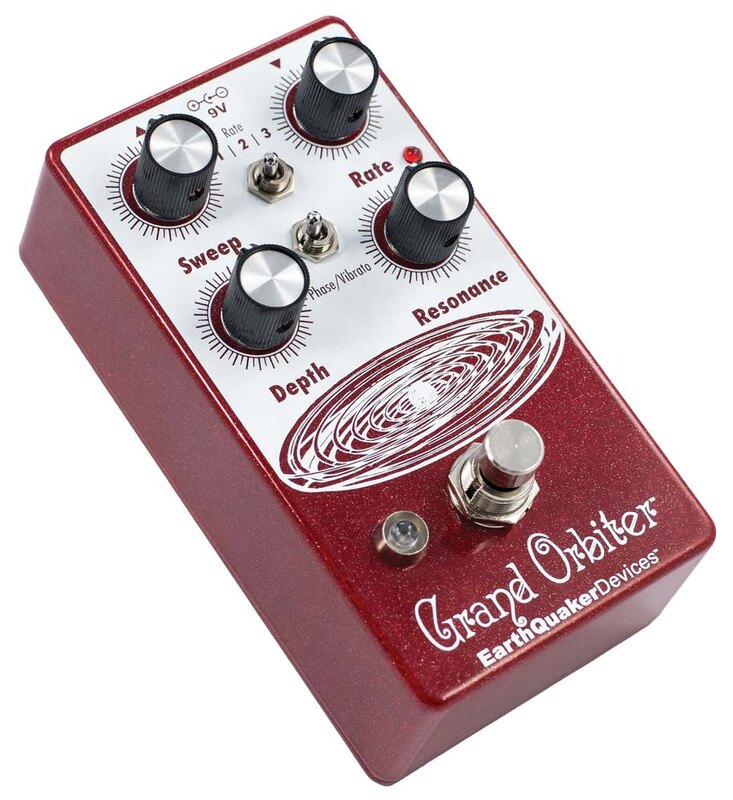

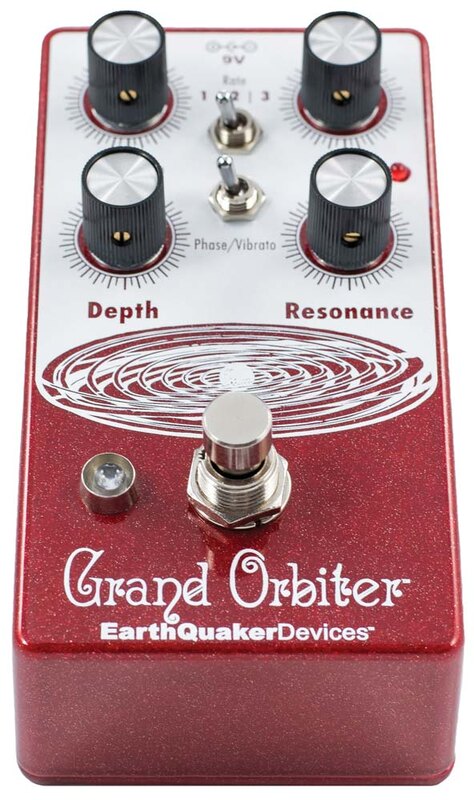

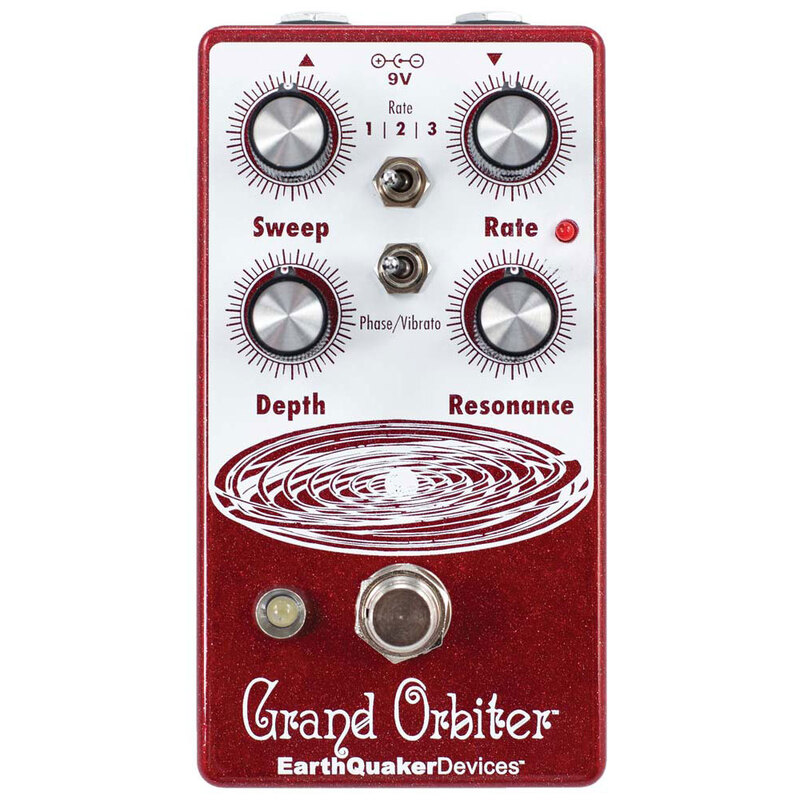

Grand Orbiter
The Grand Orbiter is a 100% analog, four-stage OTA-based phaser pedal with a three-way rate range switch, a phase/vibrato switch and relay-based Flexi-Switch bypass that allows latching or momentary use. It suits guitar, bass and synth players who want anything from static resonant filtering to fast swirling phase.
- 4-stage OTA-based phaser, 100% analog
- 3-way Rate range switch incl. LFO kill for fixed resonant filter
- Phase/Vibrato switch; Depth becomes volume in Vibrato mode
- Flexi-Switch relay true bypass: latching or momentary
- 9V DC, 2.1mm negative center, 15 mA
- Limited lifetime warranty
Foto
5Annunci
Ancora nessun annuncio di questo modello
Quando qualcuno venderà un Grand Orbiter, qui compariranno gli annunci e lo storico delle vendite.
Vendine uno ugualeDescrizione
The Grand Orbiter is a four-stage phaser built around OTA circuitry. A three-way toggle selects the modulation range: Rate 1 is slow, Rate 2 stops the LFO so the pedal acts as a fixed resonant filter, and Rate 3 is fast. The Rate knob fine-tunes LFO speed within each range, and a red LED flashes with the LFO, including when the pedal is bypassed.
Depth sets how much shifted signal is mixed with the dry signal, Sweep moves the peak frequency of the phasing from darker to livelier, and Resonance sets regeneration for a more pronounced, resonant tone. A Phase/Vibrato switch removes the dry signal for pitch vibrato; in that mode Depth works as a volume control, and low Resonance gives the cleanest vibrato.
Switching is relay-based true bypass with Flexi-Switch technology: tap once to engage and again to bypass, or hold the footswitch for momentary use. Because the relay needs power to pass signal, the pedal must be powered. It runs from a standard 9 V DC supply with a 2.1 mm negative-center barrel and is built by hand in Akron, Ohio.
Video
Specifiche
- Marca
- EarthQuaker Devices
- Modello
- Grand Orbiter
- Categoria
- Effetti e pedali

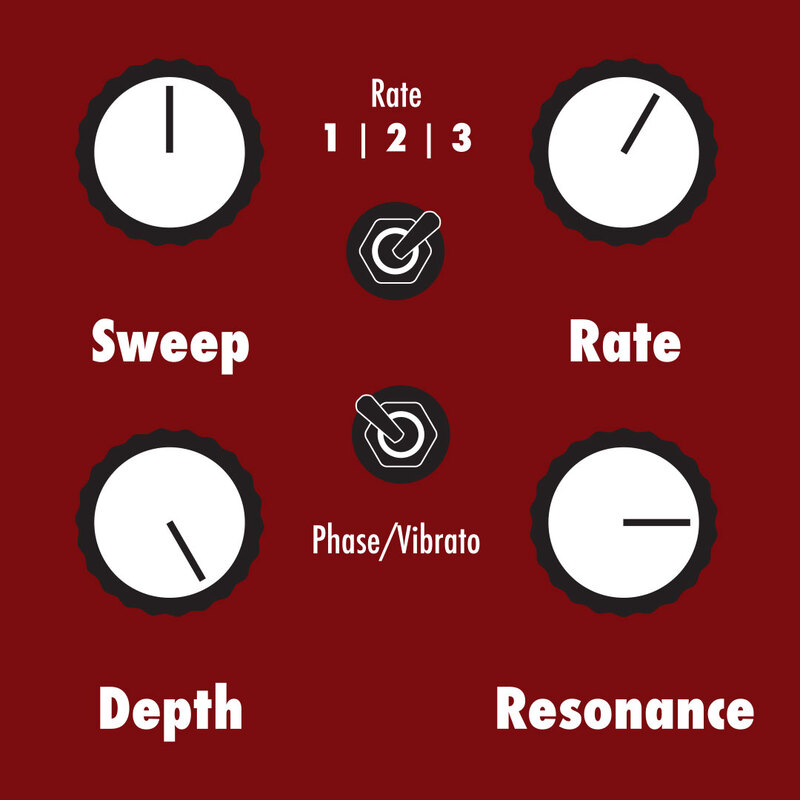

Controls
- Sweep
- Sets frequency peak of the sweep
- Rate range switch
- Rate 1 (slow) | Rate 2 (LFO kill) | Rate 3 (fast)
- Rate
- Controls LFO speed
- Depth
- Amount of phase effect mixed with dry signal; volume in Vibrato mode
- Phase/Vibrato switch
- Cuts dry signal for vibrato
- Resonance
- Controls regeneration of the phased signal
- Bypass LED
- Flashing red LED shows LFO rate, also when bypassed
Audio
- Effect type
- 4 stage OTA-based phaser
- Signal path
- 100% analog
- Bypass type
- True bypass, relay-based (Flexi-Switch)
- Input impedance
- 1 MΩ
- Output impedance
- <1 kΩ
Power
- Power supply
- 9 V DC, 2.1 mm negative center barrel
- Current draw
- 15 mA
- Max voltage
- Do not run at higher voltages
Physical
- Dimensions
- 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
- Construction
- Built by hand in Akron, Ohio
Switching
- Latching mode
- Tap once to engage, tap again to bypass
- Momentary mode
- Hold footswitch to engage, release to bypass
Support
- Warranty
- Limited lifetime warranty
- Documentation
- Operation manual available for download
