The Wave Transformer

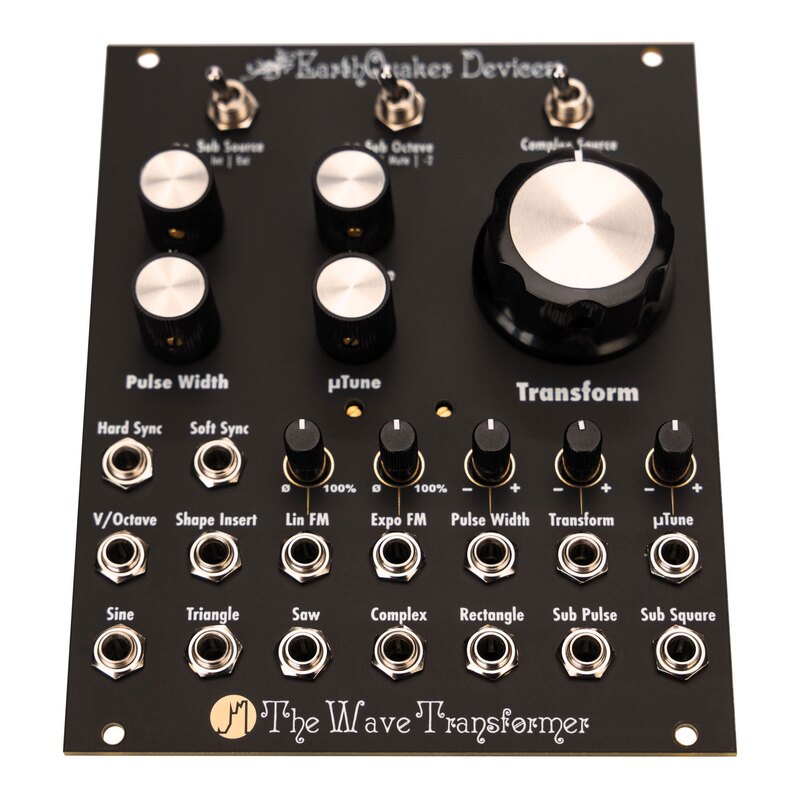

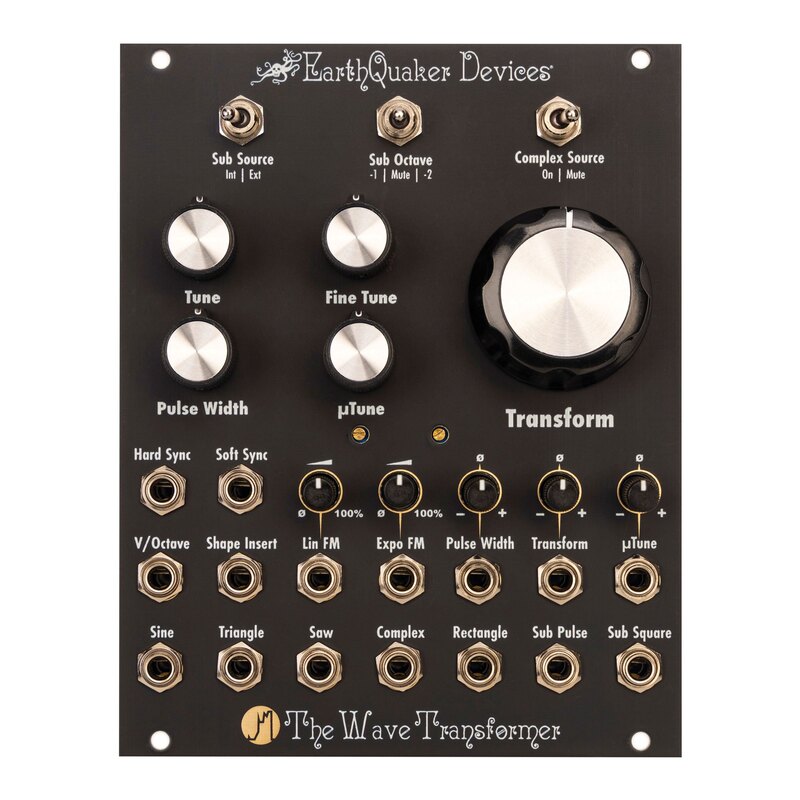

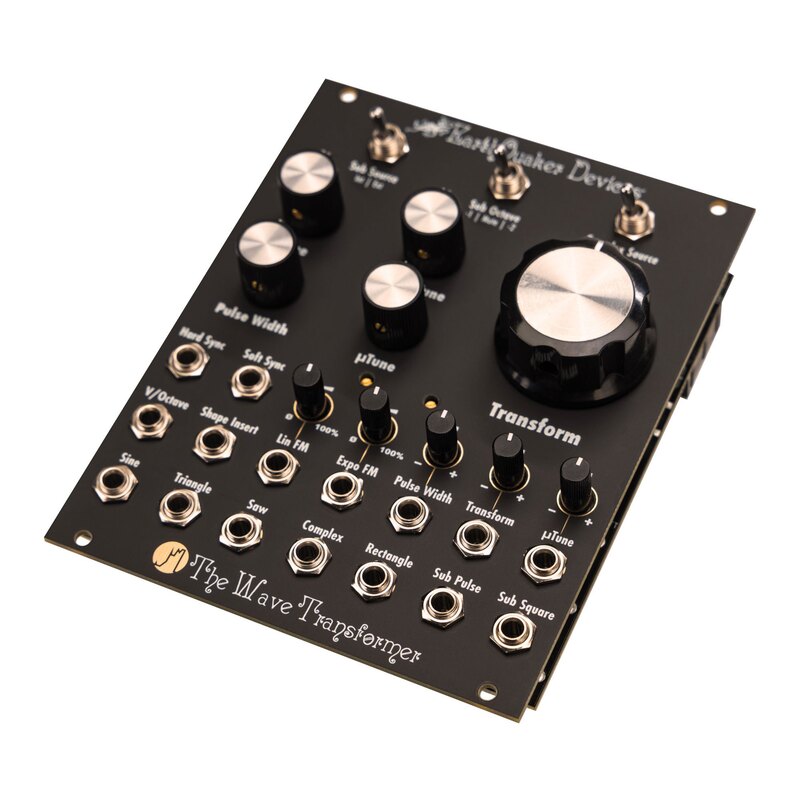

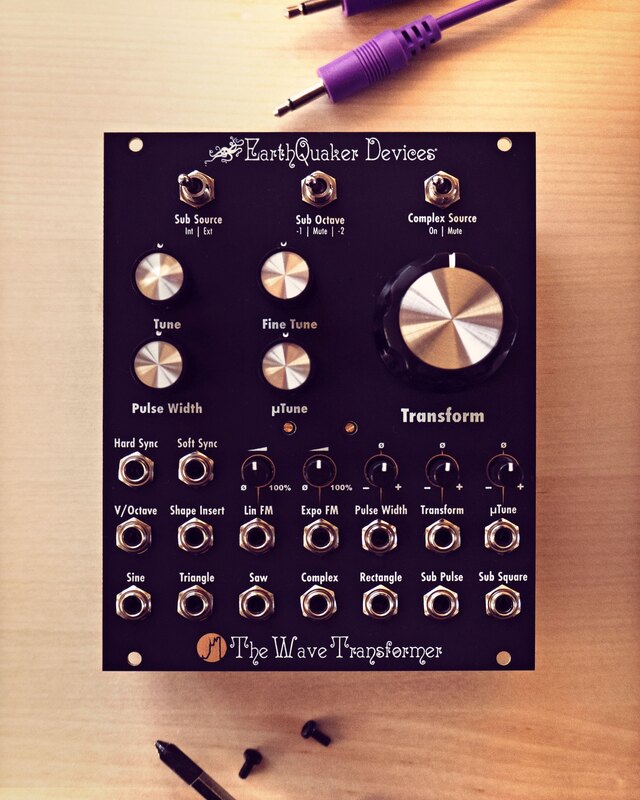

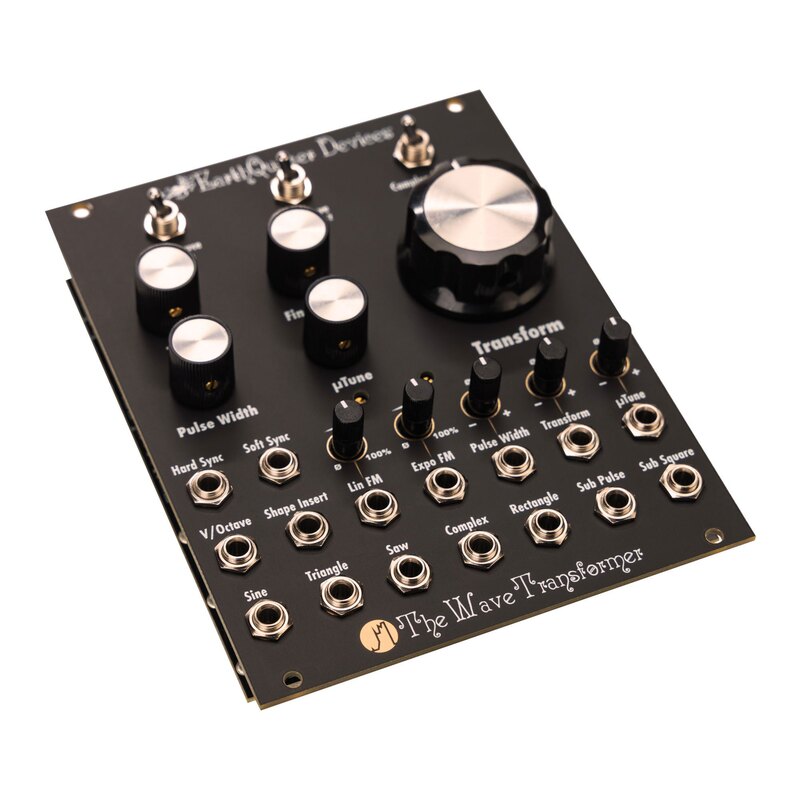

The Wave Transformer is a 20HP Eurorack analog voltage-controlled oscillator with a vintage voice and more than 8 octaves of pitch tracking. It offers seven simultaneous waveform outputs, including a Complex output with a waveshaping circuit, for modular synth users who want evolving, harmonically rich tones.
- 20HP analog Eurorack voltage-controlled oscillator
- Over 8 octaves of accurate pitch tracking
- 7 simultaneous outputs including Complex
- Hard sync, soft sync, linear FM and exponential FM
- Shape Insert jack for external signals
- 90 mA max from +12V rail; skiff friendly
Foto
8Annunci
Ancora nessun annuncio di questo modello
Quando qualcuno venderà un The Wave Transformer, qui compariranno gli annunci e lo storico delle vendite.
Vendine uno ugualeDescrizione
The Wave Transformer is an analog, voltage-controlled oscillator with over 8 octaves of accurate pitch tracking. It provides seven wave outputs at the same time: sine, triangle, saw, rectangle, sub pulse, sub square and a Complex output. The Transform control sweeps the Complex output from a triangle wave into a dense, harmonically complicated waveform, using an asymmetrical multi-differential circuit.
The core can be shaped further with hard sync, soft sync, linear FM and exponential FM. The source waveform can be muted so the circuit works as a harmonic gate or VCA. A Shape Insert jack lets external oscillators or modular-level audio signals pass through the Transform circuit. Panel controls cover coarse tune (about 7 octaves), fine tune, a micro tune of about 25 cents, pulse width, sub source, sub octave and complex source switching.
CV inputs are provided for V/Octave, pulse width, transform and micro tune, alongside the sync, FM and Shape Insert jacks. The module is powered through a standard 10-pin Eurorack connector, uses only the +12V rail and is shallow enough for skiff cases.
Video
Specifiche
- Marca
- EarthQuaker Devices
- Modello
- The Wave Transformer
- Categoria
- Synth e tastiere › Modulare (Eurorack)
Controls
- Sub Source
- Internal oscillator or Shape Insert signal
- Sub Octave
- 1 octave down, 2 octaves down or muted
- Complex Source
- Mute / unmute source wave
- Tune
- Coarse, approx. 7 octaves
- Fine Tune
- A little more than 1 octave
- µTune
- Approx. 25 cents
- Pulse Width
- 0%–100%
- Transform
- Morphs Complex output from triangle to complex waveform
Inputs
- Hard Sync
- +/-5 V
- Soft Sync
- +/-5 V
- V/Octave
- Traditional volt/octave CV
- Shape Insert
- +/-5 V
- Lin FM
- +/-5 V
- Expo FM
- +/-10 V
- Pulse Width CV
- +/-5 V
- Transform CV
- +/-5 V
- µTune CV
- +/-10 V
Outputs
- Sine
- +/-5 V
- Triangle
- +/-5 V
- Saw
- +/-5 V
- Complex
- Up to +/-10 V
- Rectangle
- +/-5 V
- Sub Pulse
- +/-5 V, 25% duty cycle, 1 octave down
- Sub Square
- +/-5 V, 1 or 2 octaves down
Power
- Current draw
- 90 mA max from +12V rail, 0 mA from -12V and +5V

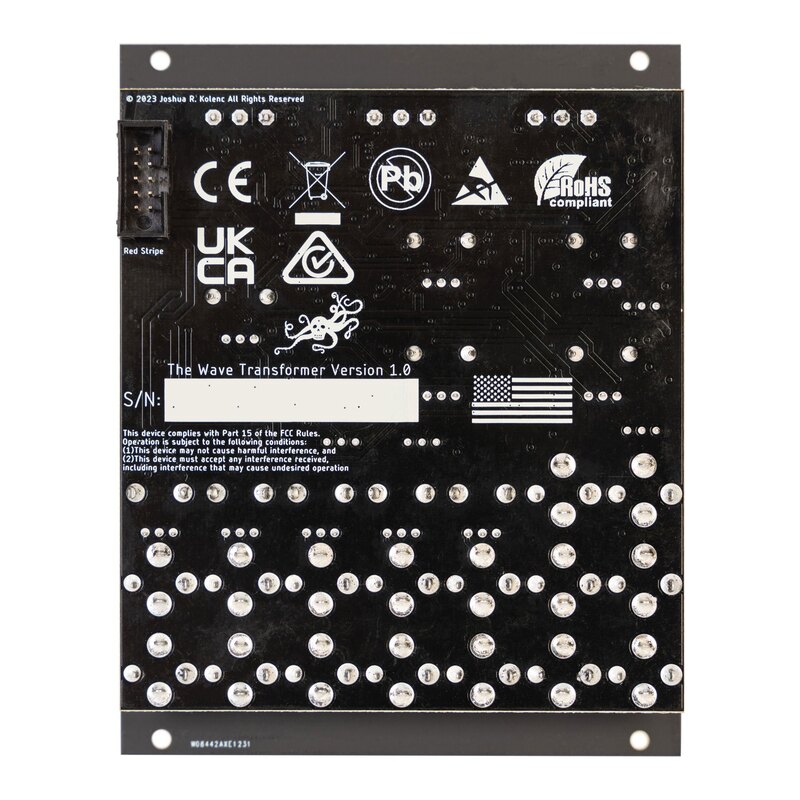

- Power connector
- Standard 10-pin Eurorack, negative pins marked
Physical
- Width
- 20HP
- Max depth
- 1 inch (25.4 mm)
- Skiff friendly
- Protrudes less than 1 inch (25.4 mm) behind panel
Other
- Warranty
- Limited lifetime warranty
