Transmisser

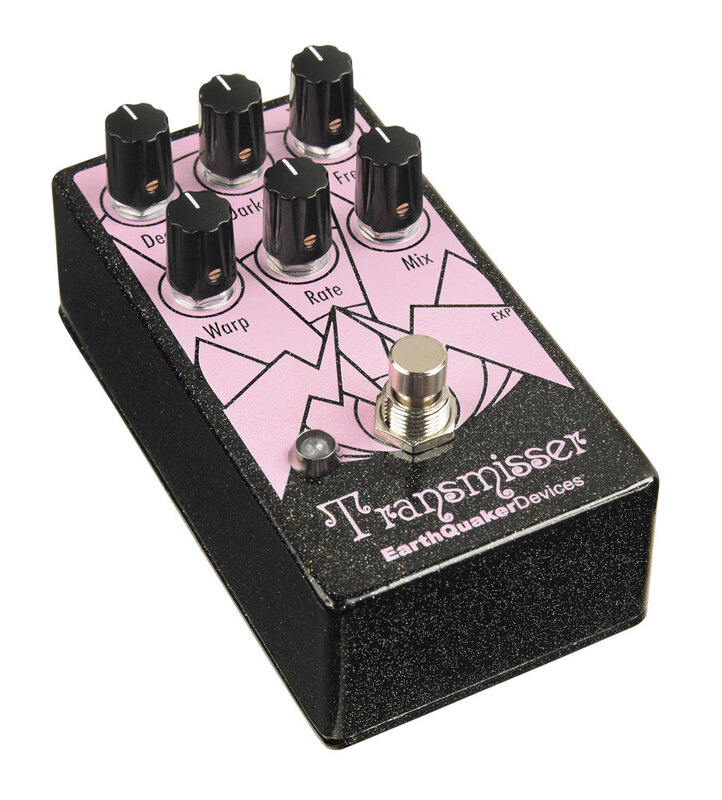

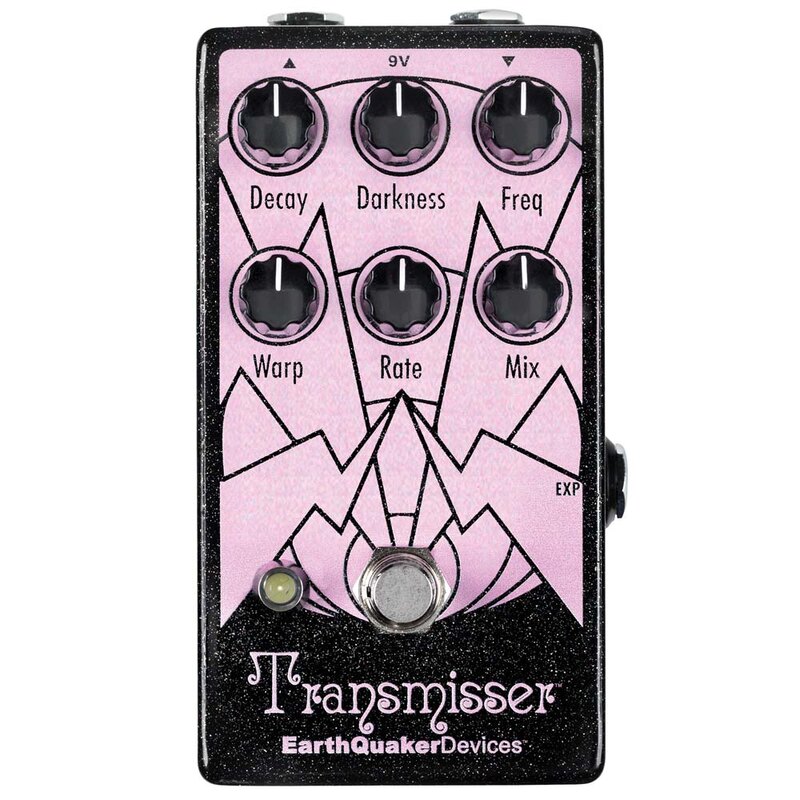

The Transmisser is a guitar effects pedal that combines a modulated, very long-decay reverb with a highly resonant filter. It suits players who want ambient, soundscape-style textures rather than conventional room or spring reverb. The maker lists it as no longer in production.
- Modulated long-decay reverb into a resonant filter
- Six controls: Decay, Darkness, Freq, Warp, Rate, Mix
- Expression pedal input for the filter frequency
- True bypass with relay-based switching
- 9 V DC, 2.1 mm negative center, 76 mA
- Listed by the maker as no longer in production
Foto
7Annunci
Ancora nessun annuncio di questo modello
Quando qualcuno venderà un Transmisser, qui compariranno gli annunci e lo storico delle vendite.
Vendine uno ugualeDescrizione
The Transmisser runs the instrument signal through a modulated reverb with an extended decay, and the reverb output is then fed into a resonant filter. The result is aimed at drones, sweeping filtered washes and other experimental ambience instead of traditional spring or room sounds.

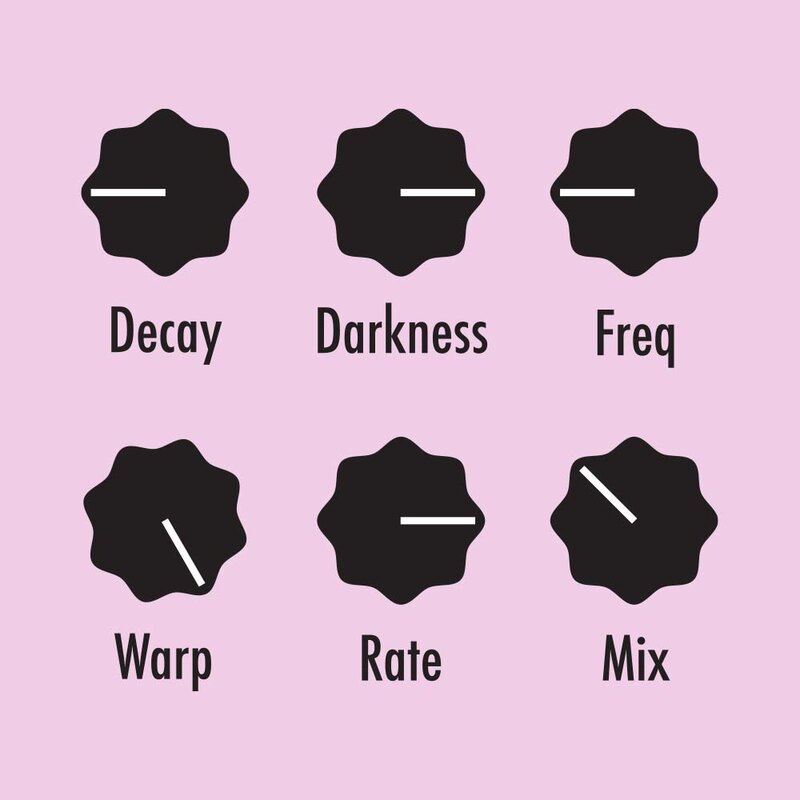

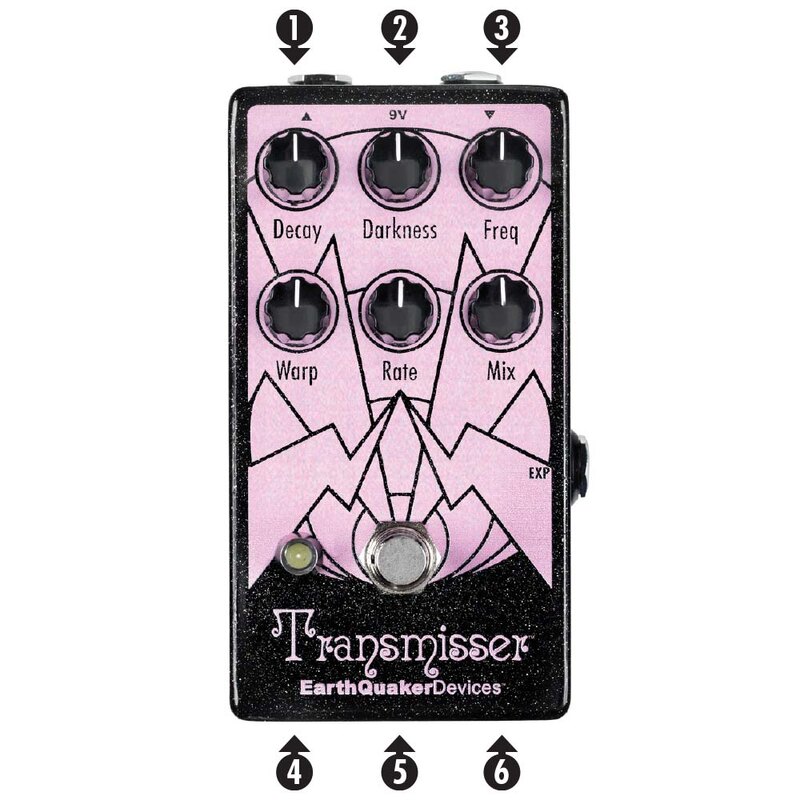

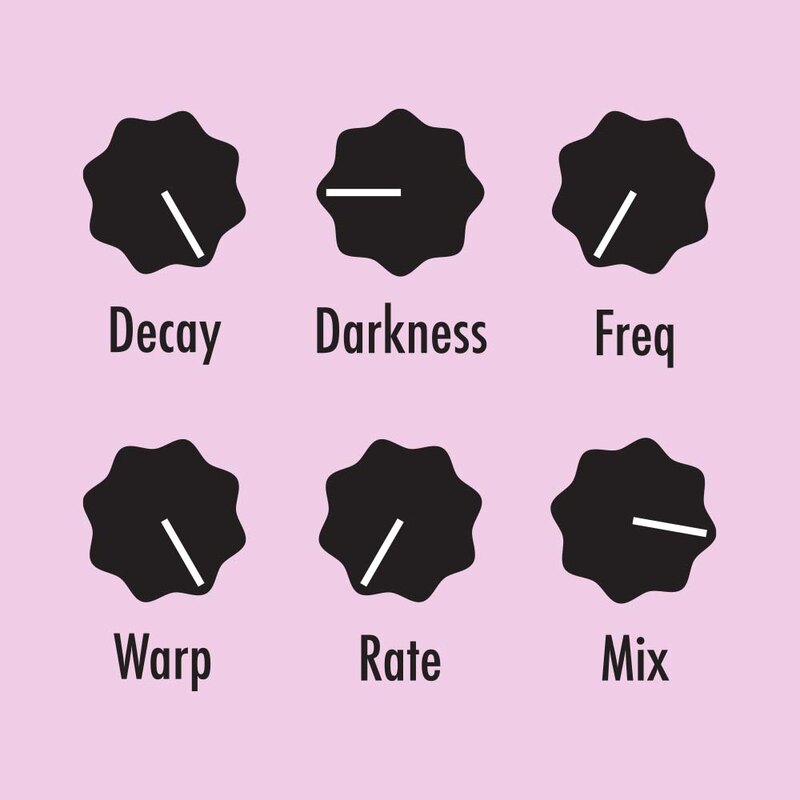

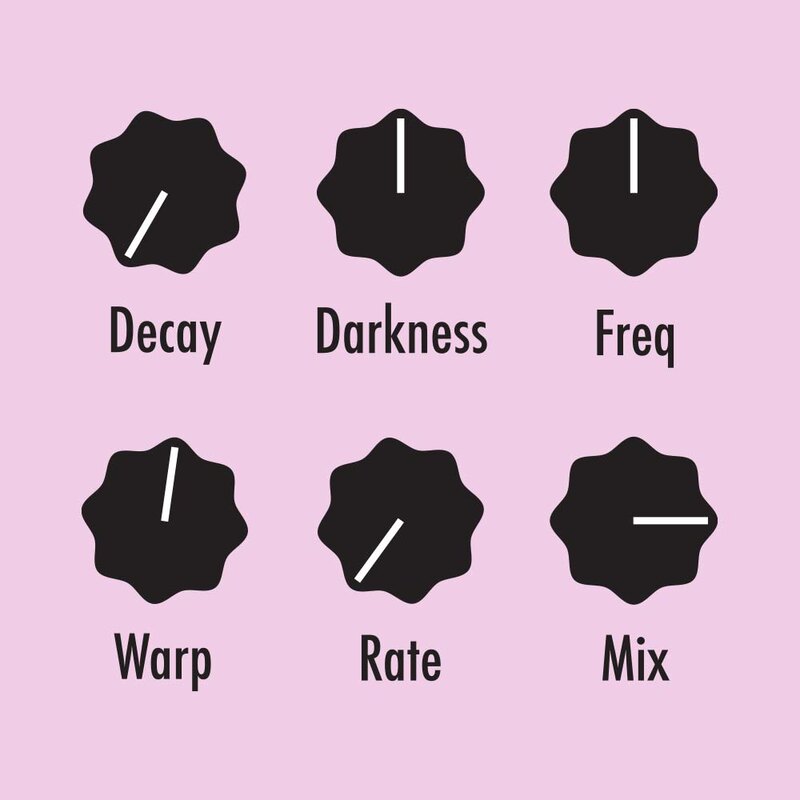

Six knobs shape the sound: Decay sets trail length, Darkness tones the reverb, Freq sets the filter frequency, Warp acts as a system-wide slew control that changes filter depth, decay character and modulation width, Rate sets modulation speed, and Mix blends wet and dry. The filter frequency can also be swept with an expression pedal.
The pedal is true bypass with relay-based electronic switching, so audio does not pass when it is unpowered. It runs from a 9 V DC supply with a 2.1 mm negative-center barrel and draws 76 mA. An expression pedal connects through a dedicated jack on the side, wired tip to wiper, ring to 3.3 V and sleeve to ground.
Video
Specifiche
- Marca
- EarthQuaker Devices
- Modello
- Transmisser
- Categoria
- Effetti e pedali
Controls
- Decay
- Sets reverb trail length; longer clockwise
- Darkness
- Reverb tone; darker clockwise, lighter counterclockwise
- Freq
- Resonant filter frequency; higher clockwise
- Warp
- System slew control; counterclockwise gives deeper filter, longer and warmer decay, wider modulation
- Rate
- Speed of system-wide modulation; faster clockwise
- Mix
- Wet/dry reverb blend; more wet clockwise
Inputs
- Expression pedal input
- Controls Freq; Tip = Wiper, Ring = 3.3v, Sleeve = ground
- Input impedance
- 1 MΩ
Outputs
- Output impedance
- <1 kΩ
Audio
- Bypass type
- True bypass
- Switching
- Electronic relay-based; audio will not pass without power
Power
- Power supply
- 9 volt DC, 2.1mm negative center barrel
- Current draw
- 76 mA
- Voltage warning
- Do not run at higher voltages
Physical
- Dimensions
- 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
- Production status
- No longer in production
