Ecler NIC-3

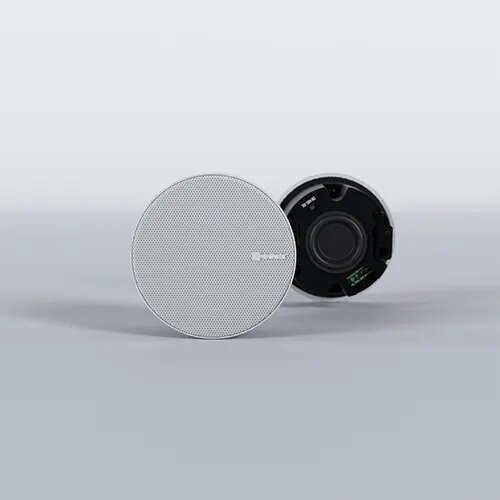

The NIC-3 is a 3-inch, 1-way in-ceiling and in-wall loudspeaker rated at 20 W RMS for 70/100 V line or 8 Ω low-impedance systems. It has an IP66 rating and an acoustic back-can, and suits compact installations in retail, hospitality, education and corporate spaces.
- 3" full-range driver, 1-way, 20 W RMS / 40 W program / 80 W peak
- 8 Ω, or 70 V / 100 V via built-in transformer (10 W on lines)
- IP66 rated, operating range -30 °C to 65 °C
- Max SPL 98 dB continuous / 104 dB peak; 140° conical coverage
- 100 mm cut-out, >120 mm depth, white RAL 9003
Foto
6Annunci
Ancora nessun annuncio di questo modello
Quando qualcuno venderà un Ecler NIC-3, qui compariranno gli annunci e lo storico delle vendite.
Vendine uno ugualeDescrizione

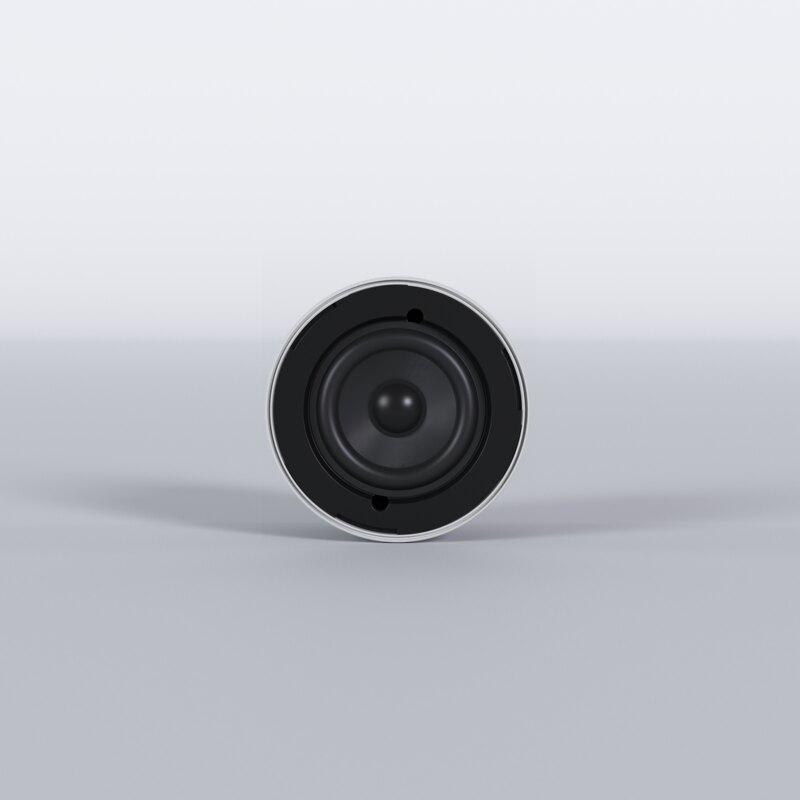

The NIC-3 is a compact full-range loudspeaker for ceilings and walls. A 3" woofer handles the whole range, and the enclosure is rated for 20 W RMS, 40 W program and 80 W peak. A built-in high-impedance transformer lets it run on an 8 Ω low-impedance line or on 70 V and 100 V distributed lines.

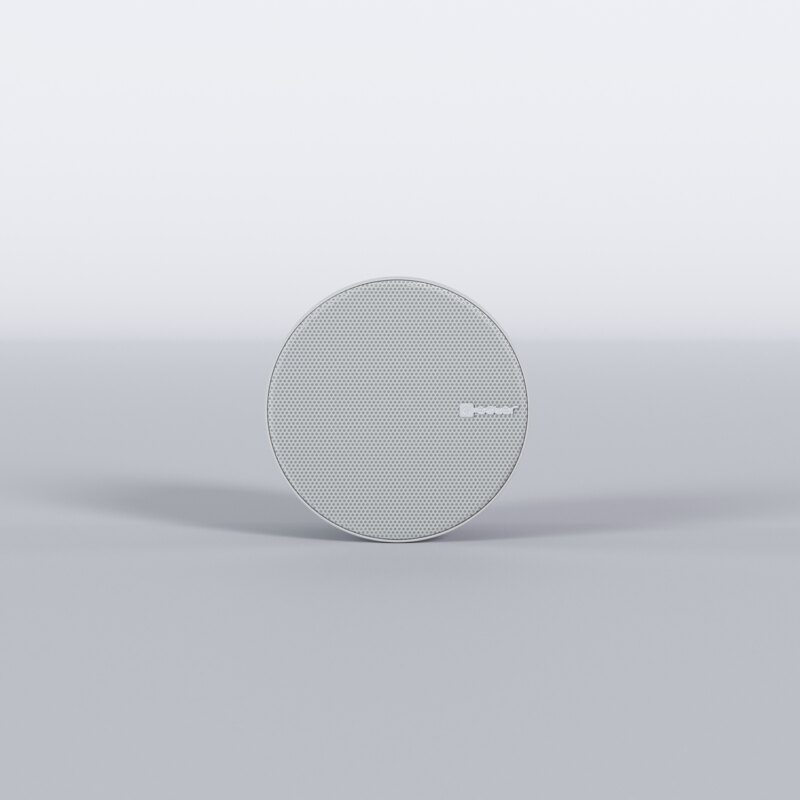

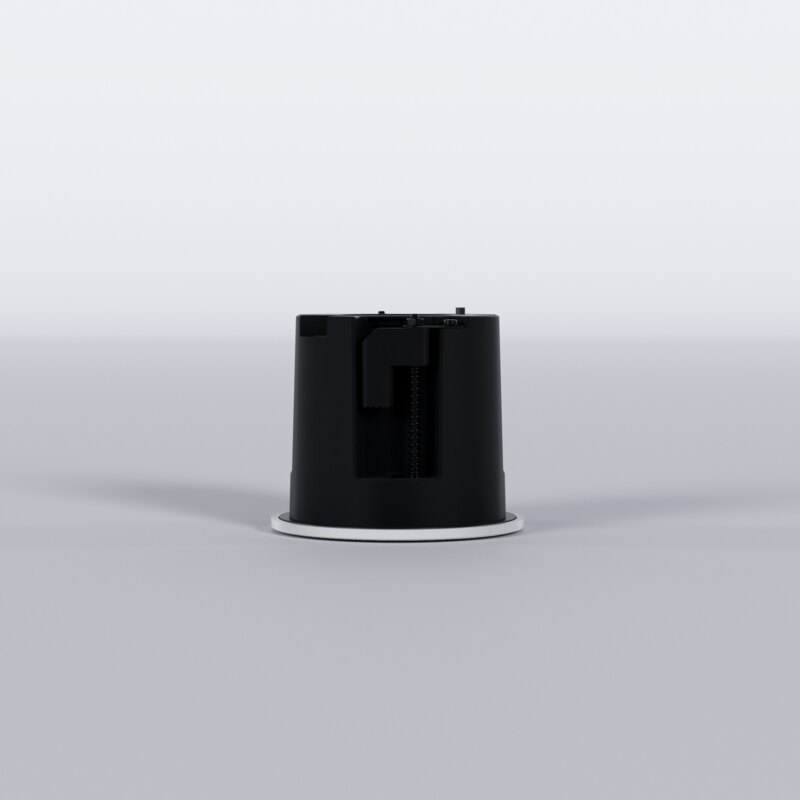

The rear back-can uses a resonator design intended to support low-frequency output and reduce unwanted resonance when the speaker is fitted in lightweight or suspended ceilings. The IP66 rating covers humid or dusty locations. The aluminium frameless grille attaches with a bayonet fixing and can be removed. The Ecler logo on the grille is also removable. White (RAL 9003) is the standard finish, and a black grille (RAL 9005) is available separately as the NICRG3BK accessory.

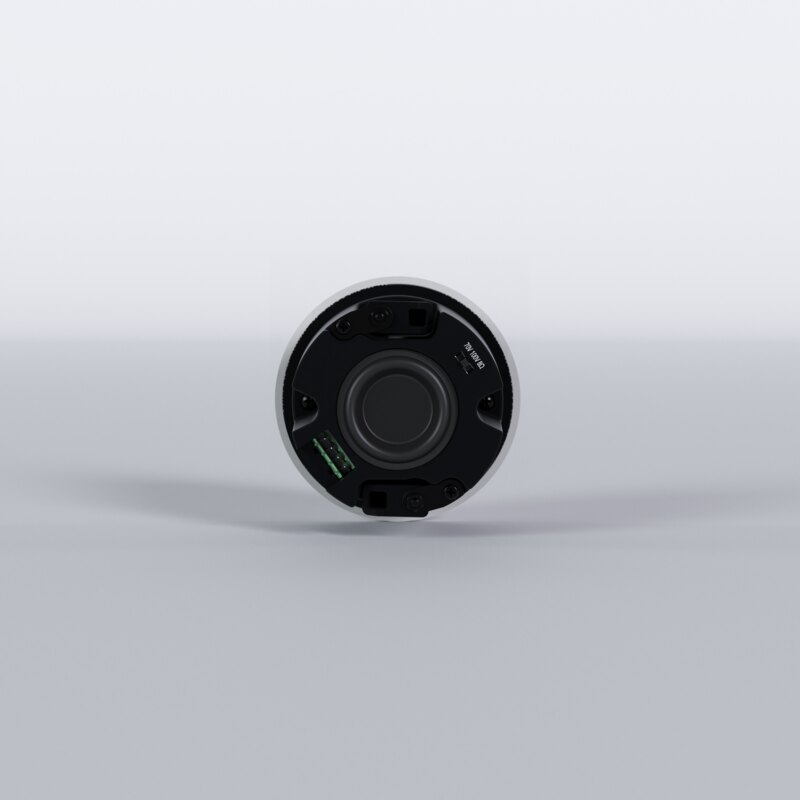

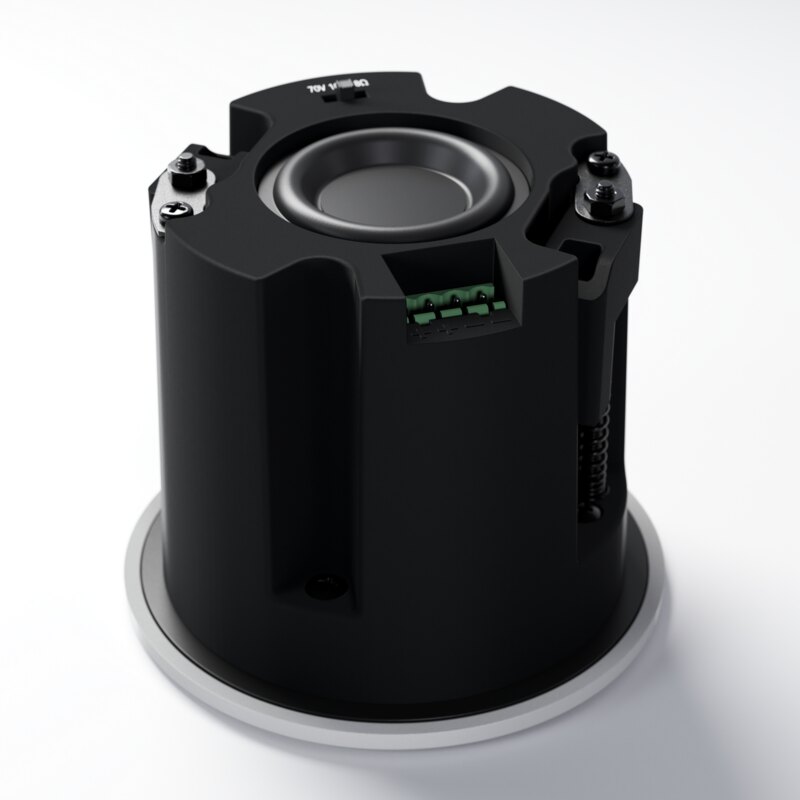

Connection is through a 4-pin Euroblock connector on the rear of the baffle. The connector takes cable from 18 AWG to 14 AWG. Two rotating tabs hold the speaker in a 100 mm cut-out in ceilings 10 to 60 mm thick, and a cutting template comes with it. EASE data files are available for system design.
Video
Specifiche
- Marca
- Ecler
- Modello
- NIC-3
- Categoria
- Audio live › Casse PA
Audio
- Type
- 1-way full range
- Low frequency driver
- 3" Woofer
- Nominal impedance
- 8 Ω
- Effective frequency range
- 108 Hz-22 kHz (-10 dB)
- Coverage angle / dispersion
- 140° conical
- Power handling
- 20 W RMS / 40 W Program / 80 W Peak
- Sensitivity
- 85 dB
- Maximum SPL
- 98 dB continuous / 104 dB peak
- Power options (Hi-Z multi-tap)
- 20 W - 8 Ω / 10 W - 100 V - 70 V
- Recommended amplifier power
- 40 W RMS
Connectivity
- Connection type
- 4-pin Euroblock connector, rear of baffle, accepts 18 AWG (0.8 mm²) to 14 AWG (2.5 mm²)
Installation
- Installation options
- In-ceiling / In-wall
- Mounting system
- 2 rotating tabs
- Grille fixing system
- Bayonet
- Recommended cut-out diameter
- 100 mm / 3.94 in.
- Required depth
- >120 mm / >4.72 in.
- Ceiling thickness
- Min 10 mm / 0.39 in.; Max 60 mm / 2.37 in.
Environmental
- Ingress protection
- IP66
- Operating temperature
- -30 °C to 65 °C / -22 °F to 149 °F
- Operating humidity
- <85% HR
- Storage temperature
- -30 °C to 65 °C / -22 °F to 149 °F
Physical
- Enclosure material
- ABS plastic
- Grille material
- Aluminum
- Finished colour
- White (RAL 9003)
- External diameter
- 113.5 mm / 4.47 in.
- Dimensions (W x H x D)
- 113.5 x 113.5 x 95 mm / 4.47 x 4.47 x 3.74 in.
- Weight
- 0.54 kg / 1.19 lb
In the box
- Included accessories
- 4-pin connector, 1 cutting template
- Optional accessories
- NICRG3BK (black grille, RAL 9005)
- Pieces per box
- 1
