Ecler VEO-XRI1CG2
A compact HDMI-over-IP receiver (decoder) that takes an H.265/H.264 stream from a VEO-XTI1CG2 transmitter and outputs video up to 1920x1200@60Hz. It suits installers building point-to-point or multicast AV systems in education, retail, corporate and hospitality venues.
- H.265/H.264 HDMI over IP receiver, up to 1920x1200@60Hz 4:4:4
- Latency under 100 ms; about 100 Mbps average bitrate
- Up to 100 m over Cat5e/6/7 on 1Gb Ethernet
- Video walls up to 9 x 9; unicast and multicast (IGMP)
- PoE or 12 V DC powered; 3 W consumption
Foto
5Annunci
Ancora nessun annuncio di questo modello
Quando qualcuno venderà un Ecler VEO-XRI1CG2, qui compariranno gli annunci e lo storico delle vendite.
Vendine uno ugualeDescrizione
The VEO-XRI1CG2 decodes an H.265/H.264 video stream delivered over a 1Gb Ethernet network and outputs it on an HDMI Type A connector. It is the receiving half of a pair with the VEO-XTI1CG2 transmitter and handles up to 1920x1200 at 60Hz with 4:4:4 chroma subsampling, with latency below 100 ms. A single Cat5e/6/7 run can span up to 100 m.
It works in unicast mode on unmanaged 1Gb networks and in multicast mode on managed 1Gb networks (IGMP required). Video wall compositing is supported up to 9 x 9 screens, along with audio embedding and extraction, mainstream and sub stream encoding, and RS-232 pass-through. HDCP 1.4 is supported.

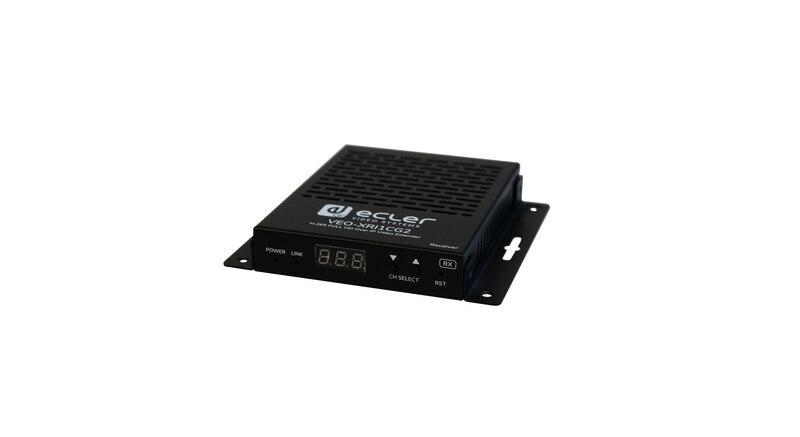

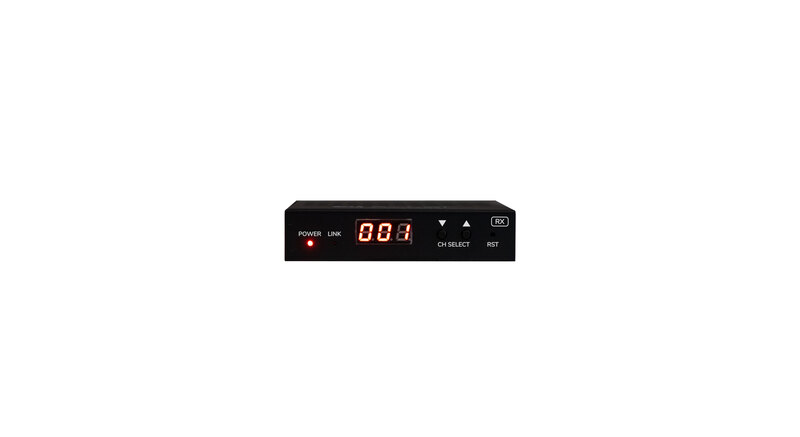

The unit can be powered by PoE or from the supplied 12 V DC adapter. Setup is done from the front panel (two buttons and an LCD) or a web interface; TCP and web GUI management also require the optional VEO-XCTRLG2 controller module. The metal chassis is half-rack width and can sit on a desktop or be mounted with the optional VEO-RK1CG2 kit.
Specifiche
- Marca
- Ecler
- Modello
- VEO-XRI1CG2
- Categoria
- Altro
Video
- Video output connector
- HDMI Type A Female, 10.2 Gbps
- Input resolution
- 1920 x 1200 @ 60Hz
- Output resolution
- 1920 x 1200 @ 60Hz
- Video codec
- H.265 / H.264
- Transmission latency
- <100ms
- Chroma subsampling
- 4:4:4
- Colour depth
- 8-bit, 10-bit, 12-bit (1080p@60Hz)
- Colour space
- RGB4:4:4, YCbCr 4:4:4, YCbCr 4:2:2
- HDCP
- 1.4
- HDMI distance
- 15m with Ecler VEO Cables
Audio
- Audio output connector
- 3-pins unbalanced Euroblock
- Audio formats
- LPCM 2.0CH
- Sample rate
- 32/44.1/48KHz
- Bit depth
- Up to 24-bit
- Frequency response
- 20Hz-20KHz (±3dB)
- ARC/eARC
- No
Control
- Control connectors
- RJ45, Euroblock
- Control protocols
- Web, TCP (only with VEO-XCTRLG2), RS-232
- Control buttons
- 1 x UP button, 1 x DOWN button
- EDID management
- Front Panel, Web settings
- Pass-through
- RS-232 via Euroblock
Network
- Network connector
- RJ45
- Network requirements
- IGMP
- Average streaming bitrate
- 100 Mbps
- Transmission distance
- 100m via Ethernet
Power
- Power supply
- PoE; External: Input 100-240 VAC @ 50-60Hz, Output: 12VDC-1A
- DC connector
- DC coaxial
- Power consumption
- 3W
Physical
- Dimensions (W x H x D)
- 120mm x 21.5mm x 95mm / 4.7 x 0.85 x 3.7 in
- Weight
- 0.074Kg
- Chassis material
- Metal
- Finished colour
- Black
- Operating temperature
- -10°C to 45°C / 14°F to 113°F
- Operating humidity
- <90% HR
- Installation options
- Desktop, 19" racks (1/2RU), VEO-RK1CG2
In the box
- Included accessories
- EU power chord, x1 Euroblock 3-pin connectors, warranty card
- Power adapter
- External PSU with 4 region power blades
