IS-AMP8100-BK
An 8-channel multi-zone Class D power amplifier from ELAC's Integrator series, rated at 100 W per channel and configured through a web interface. It suits custom-install and multi-room projects that need flexible routing and DSP.
- 8 input and 8 output channels
- 100 W per channel at 4 and 8 ohms; 200 W bridged
- Discrete Class D topology
- Full matrix routing with parametric EQ per output
- Web GUI for setup, status and saving settings
- IP control for Control4 and Crestron; 2 RU rack size
Foto
6Annunci
Ancora nessun annuncio di questo modello
Quando qualcuno venderà un IS-AMP8100-BK, qui compariranno gli annunci e lo storico delle vendite.
Vendine uno ugualeDescrizione

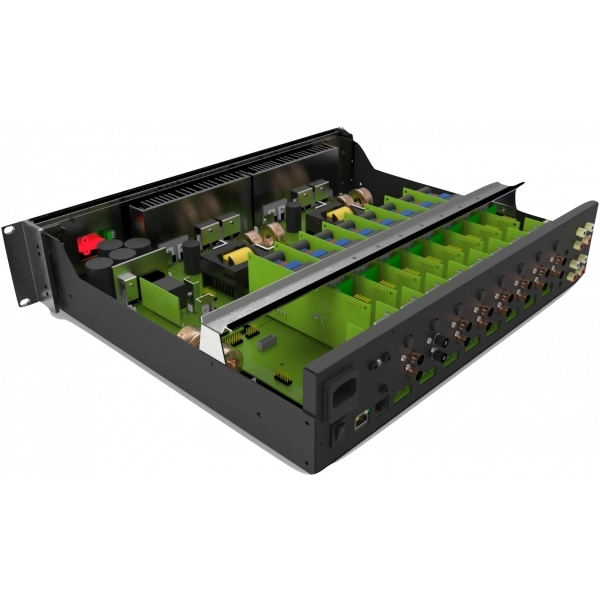

The IS-AMP8100-BK is an eight-channel amplifier in a modular, discrete Class D design. It delivers 100 W per channel into both 4 and 8 ohm loads and can be bridged for 200 W. Any input can be sent to any output through full matrix routing handled by DSP and a CPLD.
Four of the outputs are assignable, so a room can be driven by in-ceiling speakers while one output feeds a powered subwoofer in the same zone. High-pass filters can be applied to in-ceiling or in-wall speakers. Each output has a full parametric equalizer, and presets are provided for ELAC speakers to speed up setup.

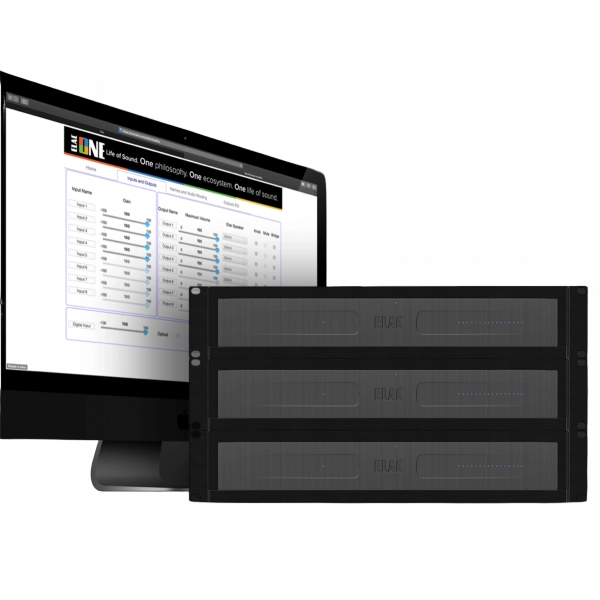

Setup and tuning are done in a web-based interface that shows the status of each channel with input and output levels, and settings can be saved to reuse across projects. Each zone has 16-bit microprocessors watching voltage, current and temperature, and the unit monitors 10 thermal points. Third-party control is available through IP commands for Control4 and Crestron. The chassis is 2 RU for rack mounting.
Specifiche
- Marca
- ELAC
- Modello
- IS-AMP8100-BK
- Categoria
- Hi-Fi e audio domestico › Amplificatori
Inputs
- Input channels
- 8
Outputs
- Output channels
- 8
- Assignable outputs
- 4
- Power output per channel @ 4 ohm
- 100 W
- Power output per channel @ 8 ohm
- 100 W
- Bridged output power
- 200 W
Audio
- Topology
- Discrete Class D
- Frequency response
- 20 Hz - 20 KHz
- Signal processing
- DSP and CPLD with full audio matrixing
- Equalization
- Full parametric EQ per output
Connectivity
- Setup interface
- Web GUI
- IP commands (third party control)
- Control4, Crestron
Physical
- Dimensions Width x Length
- 425.45 mm x 346.08 mm
- Rack spacing
- 2 RU
Software
- Monitoring
- 10 thermal points, 10 microprocessors, 3 DSP, 1 CPLD
- Firmware version listed
- 0.7.0
- Control4 driver version listed
- 1.0.0
