OD-M61T-BK
Weather-resistant 2-way on-wall speaker with a 6.5-inch woofer and 25mm silk dome tweeter, rated IP66 for outdoor or indoor use. It has selectable 70/100V transformer taps for distributed audio installs and comes in black or white.
- IP66-rated outdoor/indoor on-wall speaker
- 6.5" polypropylene woofer, 25mm silk dome tweeter
- 70/100V transformer taps plus 8 ohm mode
- Removable port plugs: sealed or ported
- Bracket for wall, ceiling, corner mounting
- Black finish, UV-resistant plastic cabinet
Foto
6Annunci
Ancora nessun annuncio di questo modello
Quando qualcuno venderà un OD-M61T-BK, qui compariranno gli annunci e lo storico delle vendite.
Vendine uno ugualeDescrizione
The Muro Pro OD-M61T-BK is a compact on-wall speaker from ELAC's Muro series, built for outdoor and indoor installation. The UV-resistant plastic cabinet carries an IP66 rating. It pairs a 6.5-inch polypropylene woofer with a 25mm silk dome tweeter, crossing over at 2160 Hz.

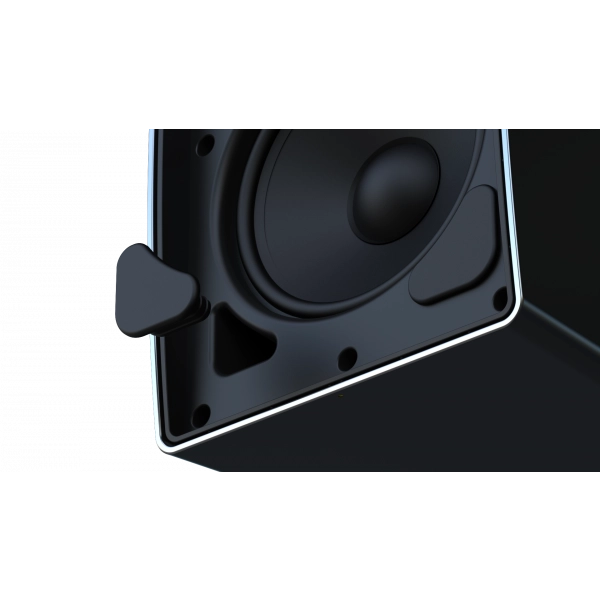

The cabinet is sealed by default. Removable port plugs let the installer switch to a ported configuration for more bass when weather conditions allow. A transformer with several taps (30W, 15W, 7.5W and 3.8W at 70V, plus an 8 ohm setting) makes it suitable for distributed audio systems.

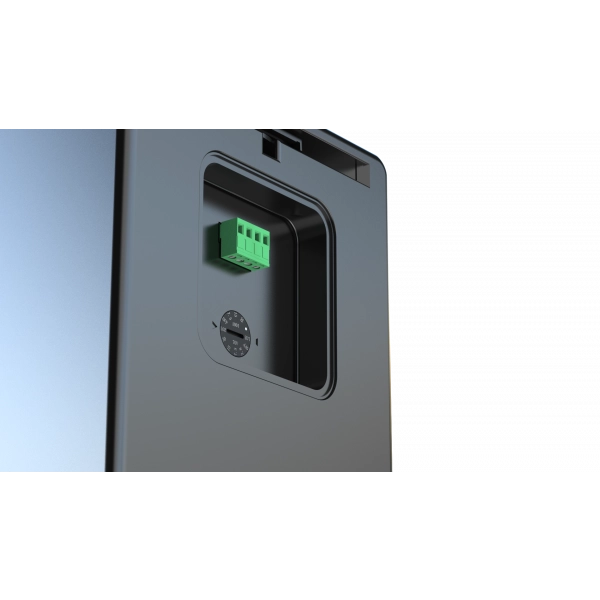

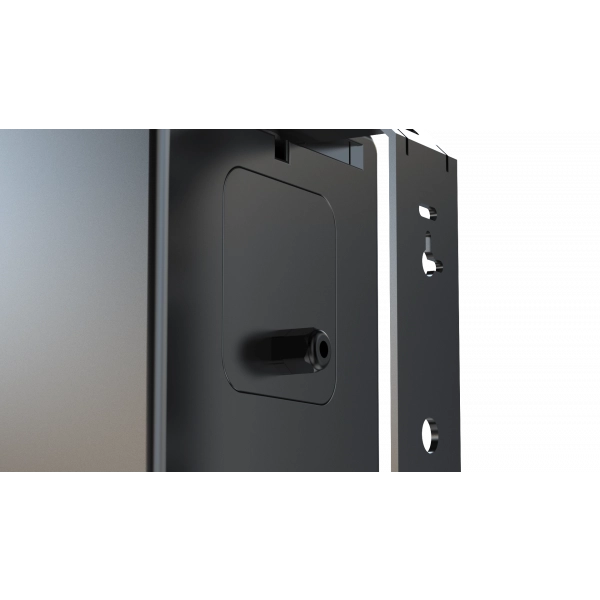

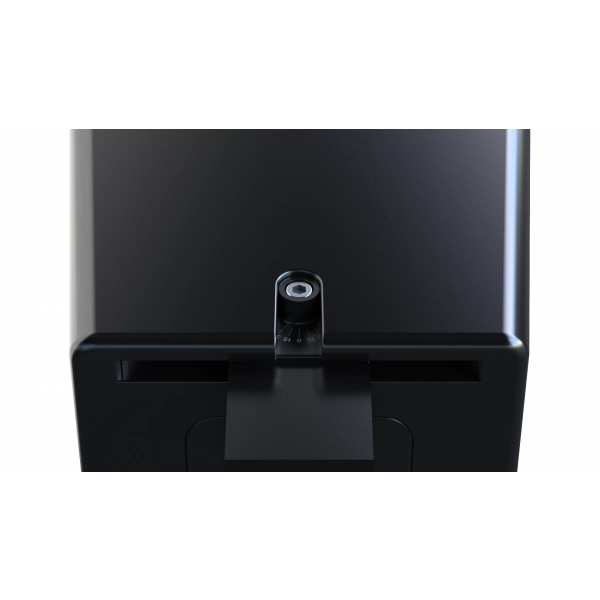

The supplied bracket supports vertical, horizontal, wall, ceiling or corner mounting. The shoulder mount has markings in 15-degree steps to help align several speakers, and the logo rotates to suit either orientation. Wiring goes to 5-way binding posts under a rear plastic cover with a watertight grommet.
Specifiche
- Marca
- ELAC
- Modello
- OD-M61T-BK
- Categoria
- Audio live › Casse PA
Audio
- Series
- MURO
- Model
- OD-M61T
- Speaker type
- 2-Way Sealed/Ported Design
- Frequency response (-3 dB)
- 80 to 20 kHz
- Frequency response (-6 dB)
- 65 to 20 kHz
- Nominal impedance
- 8 Ω
- Sensitivity @ 2.83 V/1 m
- 86 dB
- Crossover frequency
- 2160 Hz
- Tweeter
- 25 mm silk dome with 2-layer copper-clad aluminum voice coil
- Woofer
- 6 1/2" polypropylene cone, rubber surround
- Port
- Sealed with option for ported design
Power
- Transformer tap
- 8 Ω, 30 W, 15 W, 7.5 W, 3.8 W (70 V)
- Recommended amplifier power
- 30 - 100 W
- Nominal/peak power handling
- 80/130 W
Connectivity
- Speaker connection
- 5-way binding posts
Physical
- Cabinet
- UV-resistant plastic
- Cabinet finish
- Black
- Width
- 7.87 in / 200 mm
- Height
- 12.2 in / 310 mm
- Depth
- 9.25 in / 235 mm
- Net weight
- 7.71 lbs / 3.5 kg
- Weather rating
- IP66
- Mounting
- Wall, ceiling, corner; vertical or horizontal
