OW-V41L

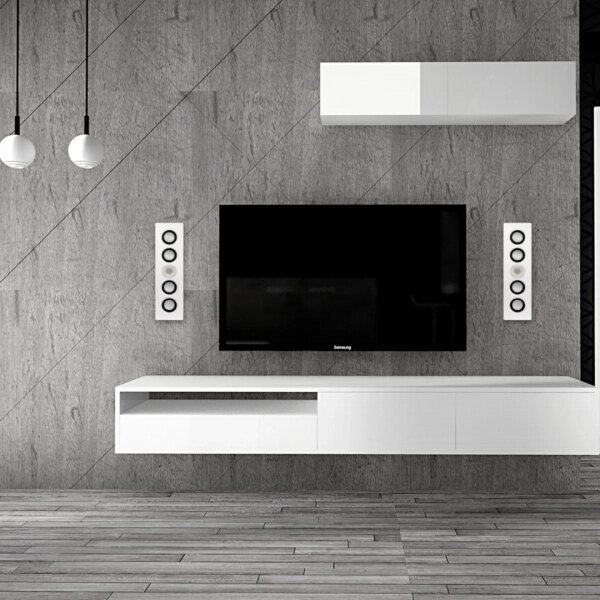

A compact two-way on-wall speaker from ELAC's Muro series, with dual 4-inch aluminum woofers and dual passive radiators in a sealed cabinet. It suits home-cinema and stereo setups where a slim wall-mounted speaker is wanted next to a TV.
- 2-way sealed design with dual passive radiators
- 1-inch soft-dome tweeter in deep spheroid waveguide
- Dual 4-inch aluminum-cone woofers
- Rear switch for vertical or horizontal mounting
- Satin black or white painted baffle, magnetic grille
- 75–35,000 Hz response, 86 dB sensitivity, 8 ohm
Foto
7Annunci
Ancora nessun annuncio di questo modello
Quando qualcuno venderà un OW-V41L, qui compariranno gli annunci e lo storico delle vendite.
Vendine uno ugualeDescrizione

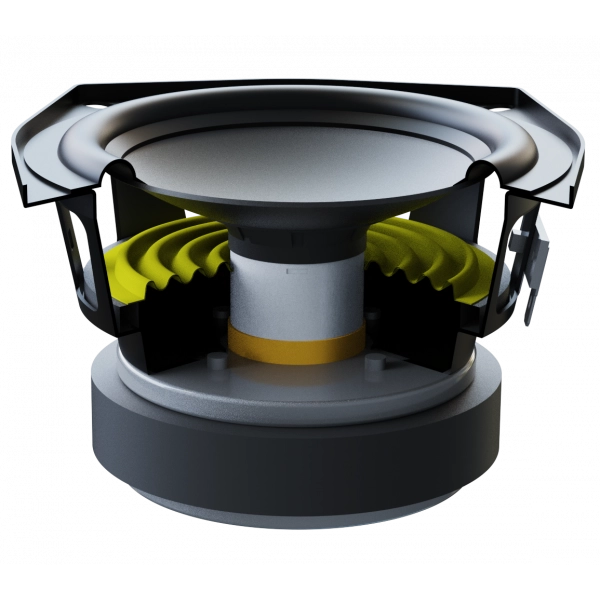

The OW-V41L is a tall, narrow on-wall speaker built around a 1-inch soft-dome tweeter and two 4-inch aluminum-cone woofers, supported by two matching 4-inch passive radiators in a sealed enclosure. The crossover point is 2,800 Hz and the stated frequency response runs from 75 to 35,000 Hz.

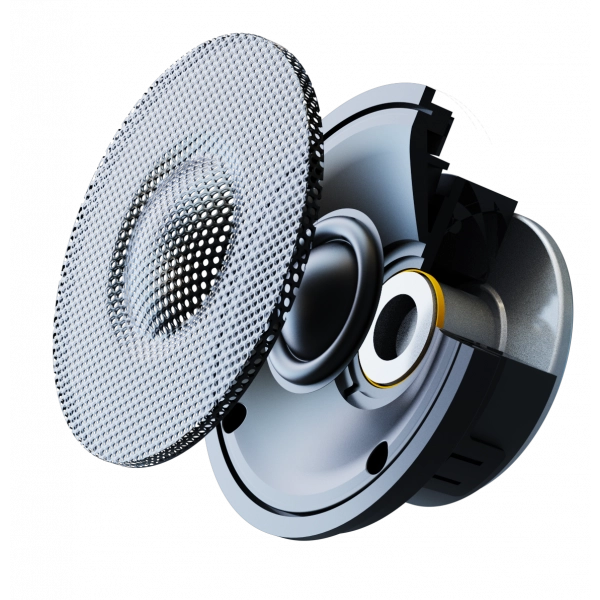

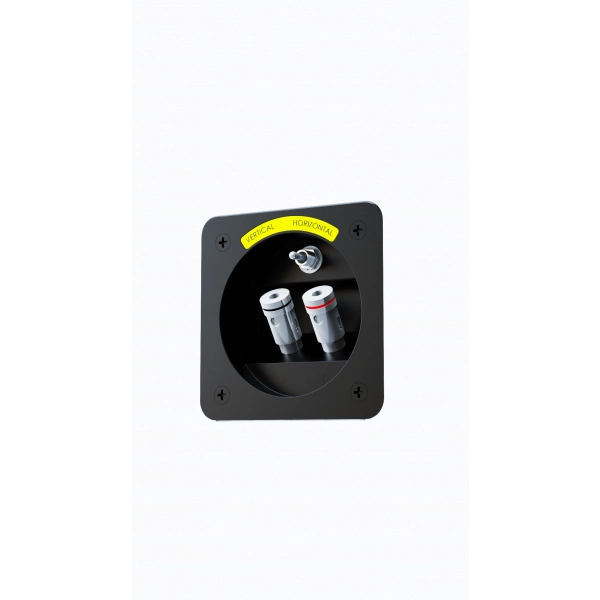

The tweeter sits in a deep spheroid waveguide intended to improve directivity control and efficiency. A switch on the back of the cabinet changes the tweeter tuning so the speaker can be mounted vertically or horizontally. The cabinet is CARB2-rated MDF, wrapped in vinyl, with a satin black or white painted front baffle and a magnetic fabric grille in grey or black.
Connection is through 5-way metal binding posts, and the nominal impedance is 8 ohms. It is rated for up to 80 watts of input. The longer Muro size is meant to pair with larger TVs, and a mounting template and manual come with it.
Video
Specifiche
- Marca
- ELAC
- Modello
- OW-V41L
- Categoria
- Hi-Fi e audio domestico › Casse
Drivers
- Enclosure type
- 2-way dual passive radiator, sealed
- Tweeter
- 1-inch soft dome
- Woofer
- Dual 4-inch Aluminum cones
- Passive woofer
- Dual 4-inch Aluminum cones
Audio
- Crossover frequency
- 2,800 Hz
- Frequency response
- 75 to 35,000 Hz
- Sensitivity
- 86 db at 2.83 v/1m
- Max power input
- 80 watts
- Nominal impedance
- 8 Ohm
- Orientation crossover switch
- Yes
Connectivity
- Binding posts
- 5-way metal
Physical
- Cabinet
- CARB2 rated MDF
- Cabinet finish
- Painted Satin Black or White Front Baffle with vinyl wrapped cabinet
- Grille
- Magnetic Grey or Black Fabric Grill
- Dimensions (WxHxD)
- 7.81 in / 198 mm x 25.50 in / 648 mm x 3.38 in / 86 mm
- Weight
- 15.43 lbs / 7.00 kg
In the box
- Accessories included
- Mounting template, manual
