UniFi UF5.2
Floorstanding three-way loudspeaker from the second generation of ELAC's UniFi series, with a concentric midrange/tweeter and three aluminium woofers in a slim bass-reflex cabinet. Aimed at hi-fi listeners who want a floorstander with front-firing ports.
- True 3-way bass-reflex floorstanding speaker
- Concentric 1" soft-dome tweeter and 4" aluminium midrange
- Three 5-1/4" aluminium woofers
- Front-firing port tubes, slimmer cabinet than first UniFi
- Frequency response 42 - 35,000 Hz, 6 Ω nominal
- Black ash vinyl finish over braced MDF cabinet
Foto
6Annunci
Ancora nessun annuncio di questo modello
Quando qualcuno venderà un UniFi UF5.2, qui compariranno gli annunci e lo storico delle vendite.
Vendine uno ugualeDescrizione
The UF52 is a floorstanding bass-reflex speaker with a true three-way layout. A 1" soft-dome tweeter sits at the centre of a 4" aluminium midrange in a concentric driver, and three 5-1/4" aluminium woofers handle the low end. Crossover points are 200 Hz and 2000 Hz, and the nominal impedance is 6 Ω.

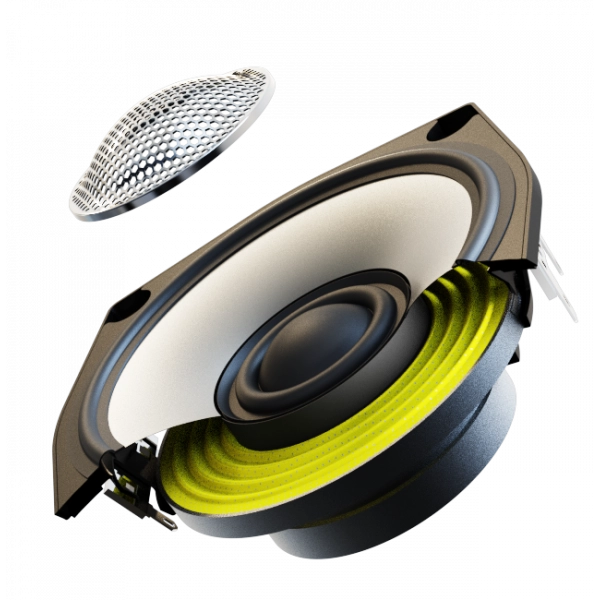

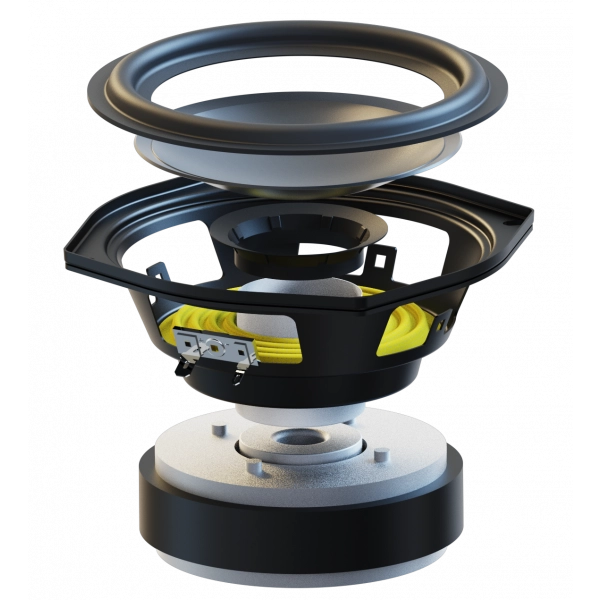

Compared with the first UniFi series, the 2.0 generation has a slimmer cabinet with front-firing port tubes. The concentric driver has a wide-surround tweeter, a larger voice coil, a new aluminium cone profile, a low-profile surround and a neodymium magnet assembly. The woofers use a single-piece dished aluminium cone with an oversized magnet, a larger voice coil and an extended pole piece.

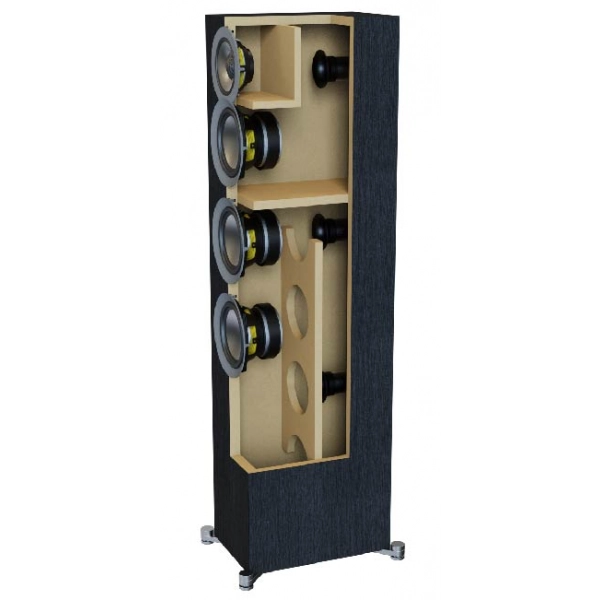

The cabinet has thick MDF walls with internal bracing to reduce vibration, and it comes in a black ash vinyl finish. It connects to an amplifier as a passive speaker; frequency response is given as 42 - 35,000 Hz with a sensitivity of 85 dB at 2.83 V / 1 m and a maximum power input of 140 W.
Specifiche
- Marca
- ELAC
- Modello
- UniFi UF5.2
- Categoria
- Hi-Fi e audio domestico › Casse
Audio
- Speaker type
- 3-way, bass reflex
- Tweeter
- 1" Soft Dome
- Mid-range
- 4" Aluminum
- Woofer
- 3 x 5-1/4" Aluminum
- Frequency response
- 42 - 35.000 Hz
- Crossover frequency
- 200 / 2000 Hz
- Sensitivity
- 85 dB @ 2,83 V / 1 m
- Nominal impedance
- 6 Ω
Power
- Max. power input
- 140 W
Physical
- Finish
- Black Ash vinyl
- Dimensions (W x H x D)
- 185 × 980 × 275 mm
- Cabinet construction
- MDF walls with internal bracing
- Port design
- Front-firing port tubes
Software
- Documentation
- Sales sheet and owner manual (English, v1.0.0)
