F1-10S
The F1-10S is a two-way floorstanding loudspeaker with a 250mm IsoFlare point-source driver and a 75mm titanium dome compression tweeter. It has a downward-firing BassTrax port and is aimed at audiophile listeners using anything from low-power valve amplifiers to powerful solid-state designs.
- 2-way floorstander with 250mm IsoFlare point-source driver
- 75mm titanium alloy dome compression tweeter
- Frequency response 26Hz - 26kHz (-6dB, in room)
- Sensitivity 94dB (2.83V @ 1m), 8 Ohm nominal
- HF energy and presence adjustments of +/-3dB
- Downward-firing BassTrax port; Piano Gloss Walnut finish
Foto
7Annunci
Ancora nessun annuncio di questo modello
Quando qualcuno venderà un F1-10S, qui compariranno gli annunci e lo storico delle vendite.
Vendine uno ugualeDescrizione

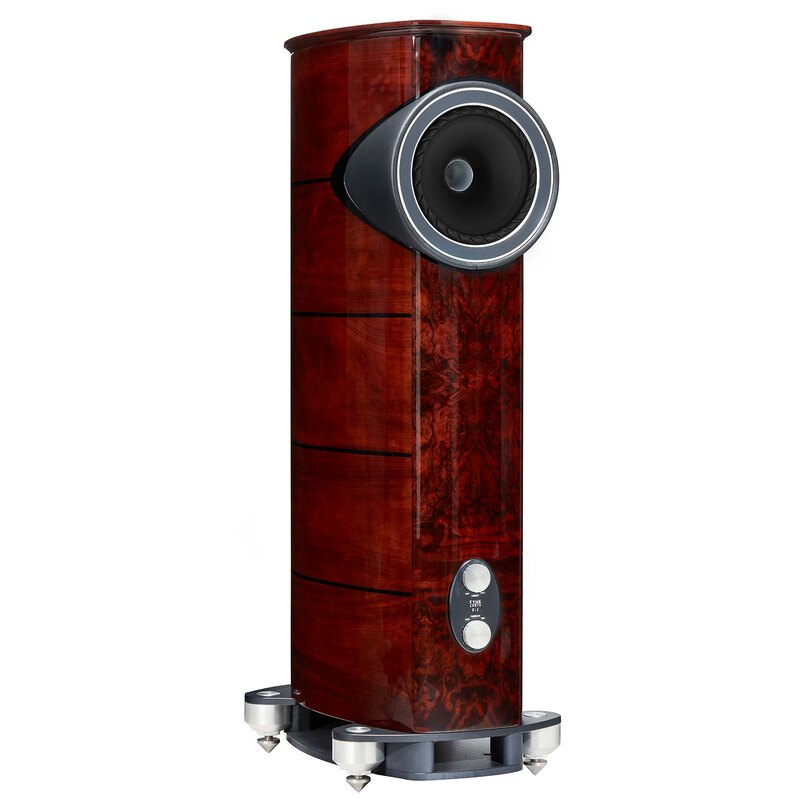

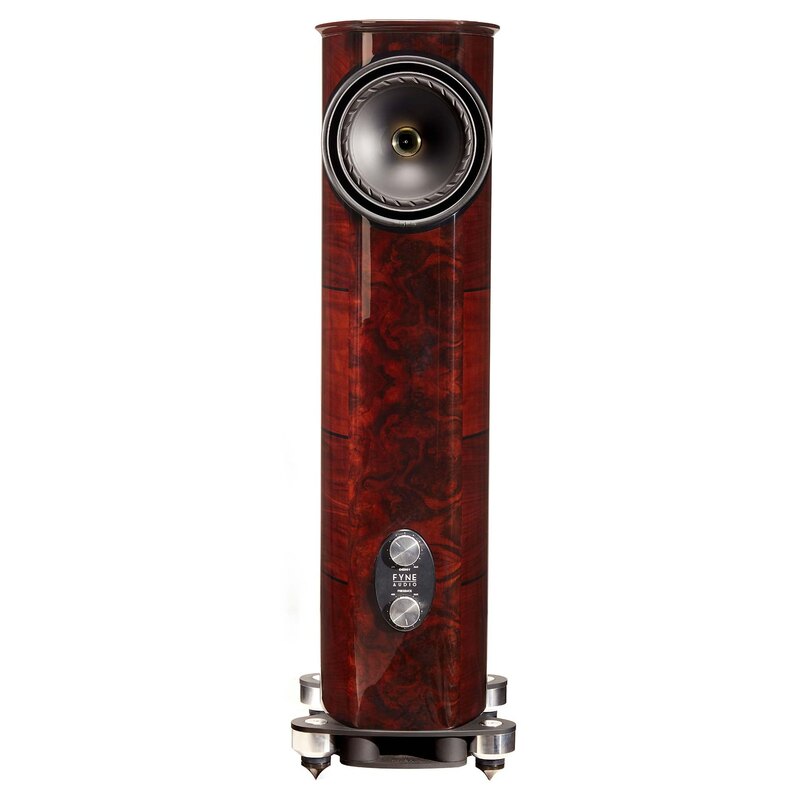

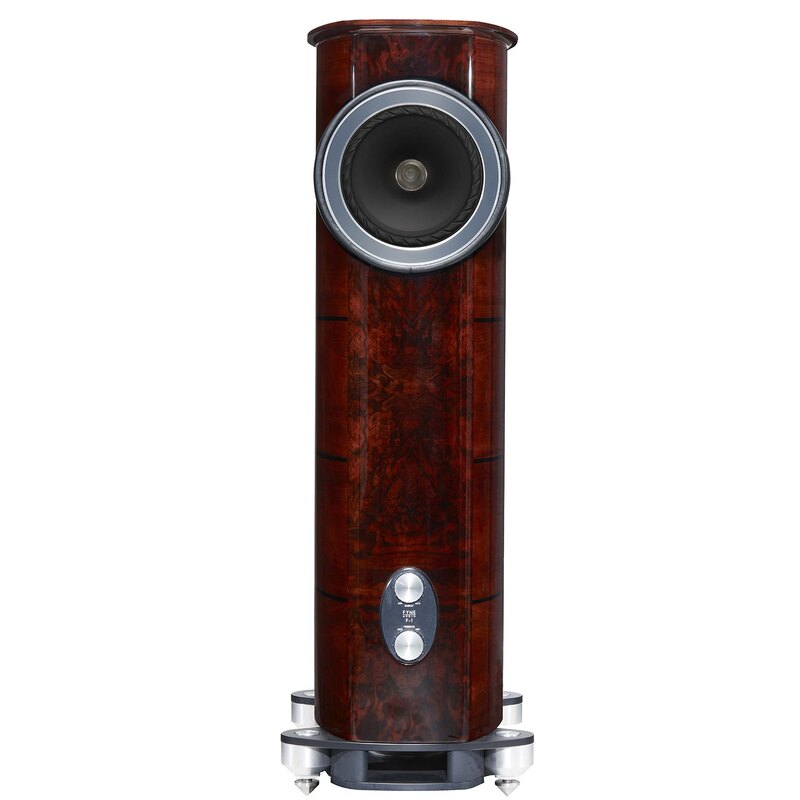

The F1-10S is a floorstanding speaker built around a 250mm (10 in) IsoFlare point-source driver with a multi-fibre bass/midrange cone and a FyneFlute surround. A 75mm titanium alloy dome compression tweeter sits at its centre, giving a time-aligned response. Quoted in-room frequency response is 26Hz to 26kHz (-6dB), and sensitivity is 94dB (2.83V at 1m) on an 8 ohm nominal impedance, so it suits a wide range of amplifiers.

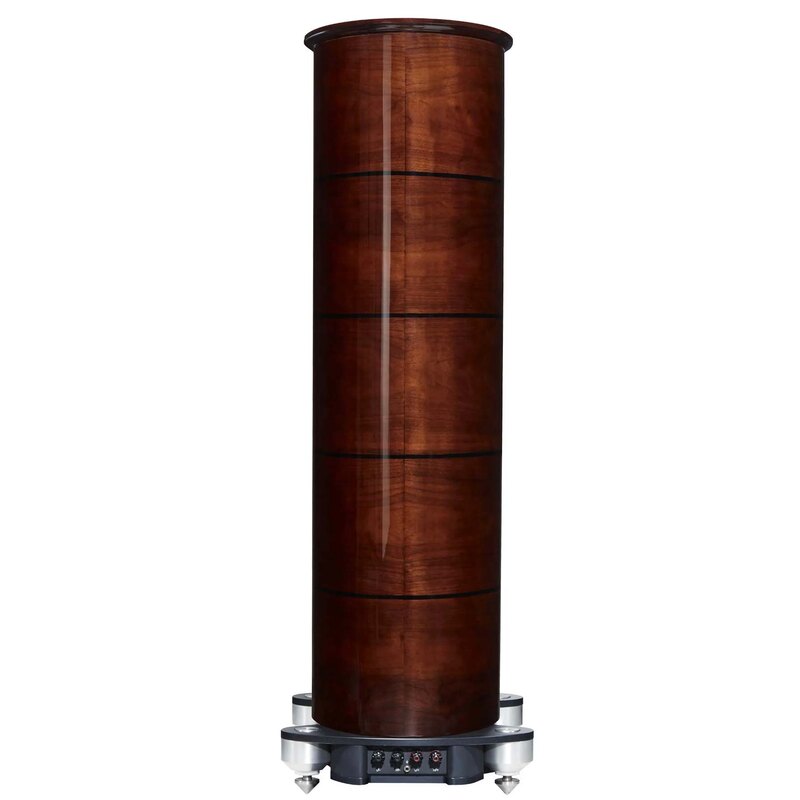

The cabinet is a twin-cavity ported design with a downward-firing port and a BassTrax Tractrix diffuser. The crossover is a bi-wired passive, low-loss design with 2nd-order low-pass and high-pass filters, deep cryogenically treated, with a 750Hz crossover frequency. Two adjustments let the user tune the sound to the room: high-frequency energy (750Hz to 26kHz) and presence (2.5kHz to 5.0kHz), each by plus or minus 3dB.
The speaker is finished in lacquered burr walnut (Piano Gloss Walnut) and is made and finished by hand at the maker's UK facility. It is sold per pair and connects to an amplifier through bi-wire speaker terminals.
Video
Specifiche
- Marca
- Fyne Audio
- Modello
- F1-10S
- Categoria
- Hi-Fi e audio domestico › Casse
Audio
- System type
- 2 way, downwards firing port with BassTrax Tractrix diffuser
- Frequency response (-6dB typical in room)
- 26Hz - 26kHz
- Sensitivity (2.83 Volt @ 1m)
- 94dB
- Nominal impedance
- 8 Ohm
- Drive unit complement
- 1 x 250mm IsoFlare point source driver with FyneFlute surround, multi-fibre bass / midrange cone, with 75mm titanium alloy dome compression tweeter, neodymium magnet system
Crossover
- Crossover frequency
- 750Hz
- Crossover type
- Bi-wired passive low loss, 2nd order low pass, 2nd order high pass, Deep Cryogenically Treated
- System adjustments
- High frequency energy (750Hz - 26kHz) +/-3dB; Presence (2.5kHz - 5.0kHz) +/- 3dB
Power
- Recommended amplifier power
- 20 - 280 Watt RMS
- Continuous power handling
- 140 Watt RMS
- Peak power handling
- 500 Watt
Physical
- Dimensions (H x W x D)
- 1191 x 405 x 581mm (46.9 x 15.9 x 22.9")
- Net weight (each)
- 57.7kg
- Finishes
- Piano Gloss Walnut
- S-Trax position (from cabinet front edge)
- 108mm (4.3")
- SuperTrax position (from cabinet front edge)
- 84mm (3.3")
General
- Series
- F1 Series
- SKU
- F8000061
- Sold as
- Per pair
