F701
The F701 is a two-way standmount loudspeaker from the F700 Series, built in the UK, with a 200mm IsoFlare point source driver and a downward-firing BassTrax port. It suits Hi-Fi listeners who want a floor-standing-class sound from a stand-mounted cabinet.
- 2-way standmount with 200mm IsoFlare point source driver
- 25mm magnesium dome compression tweeter
- Downward-firing port with BassTrax Tractrix diffuser
- Sensitivity 91dB, nominal impedance 8 Ohm
- Frequency response 35Hz - 34kHz (-6dB, in room)
- Piano gloss black, white or walnut; built in the UK
Foto
8Annunci
Ancora nessun annuncio di questo modello
Quando qualcuno venderà un F701, qui compariranno gli annunci e lo storico delle vendite.
Vendine uno ugualeDescrizione

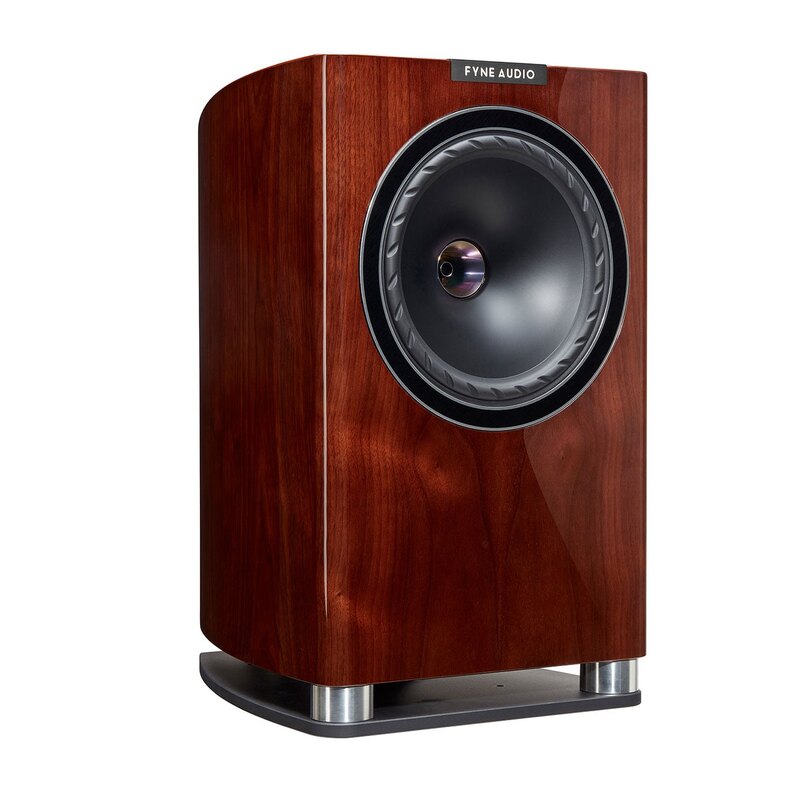

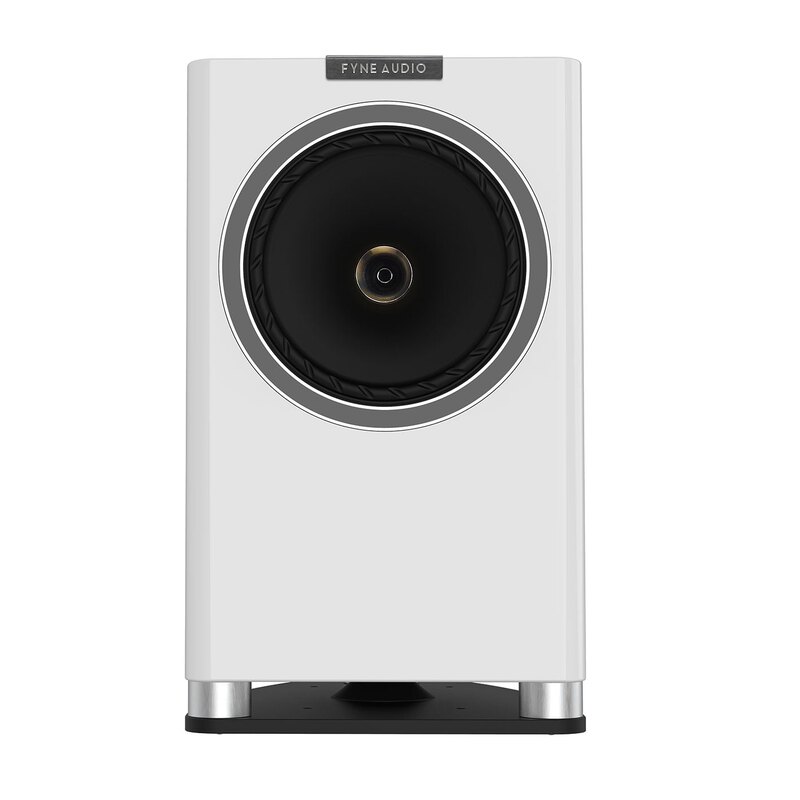

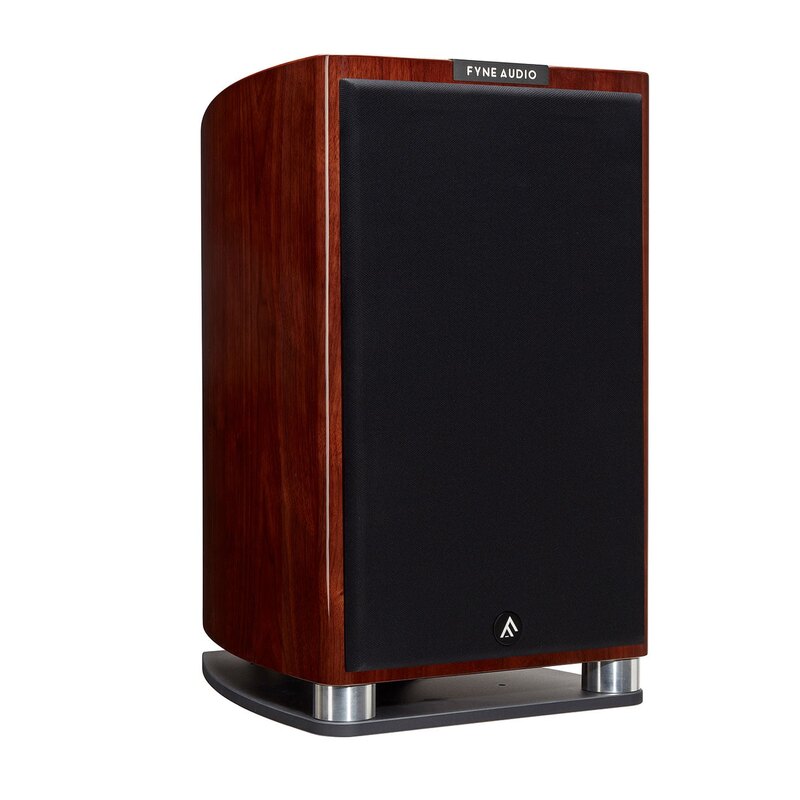

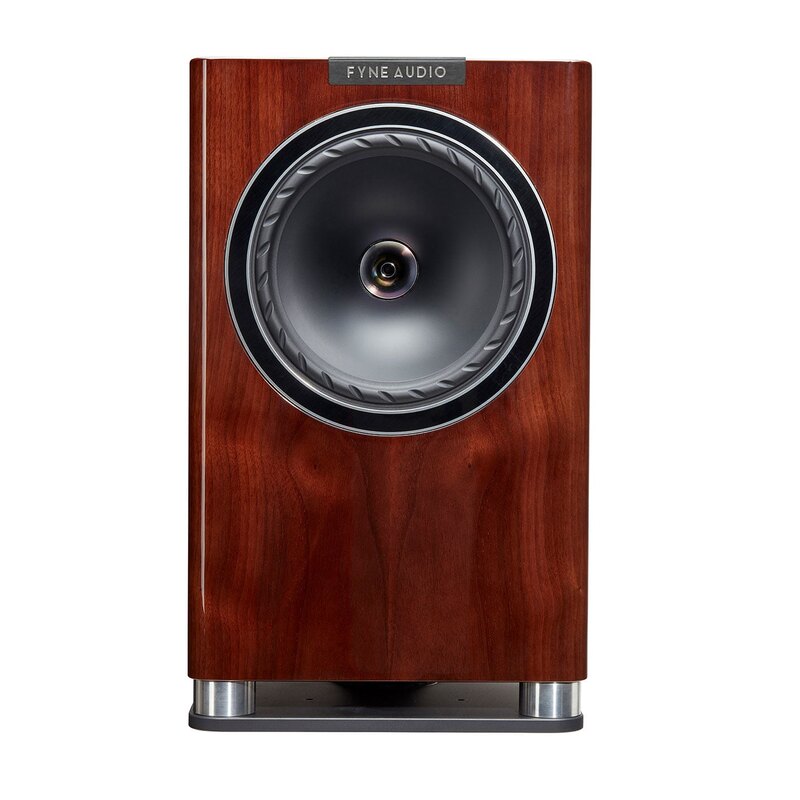

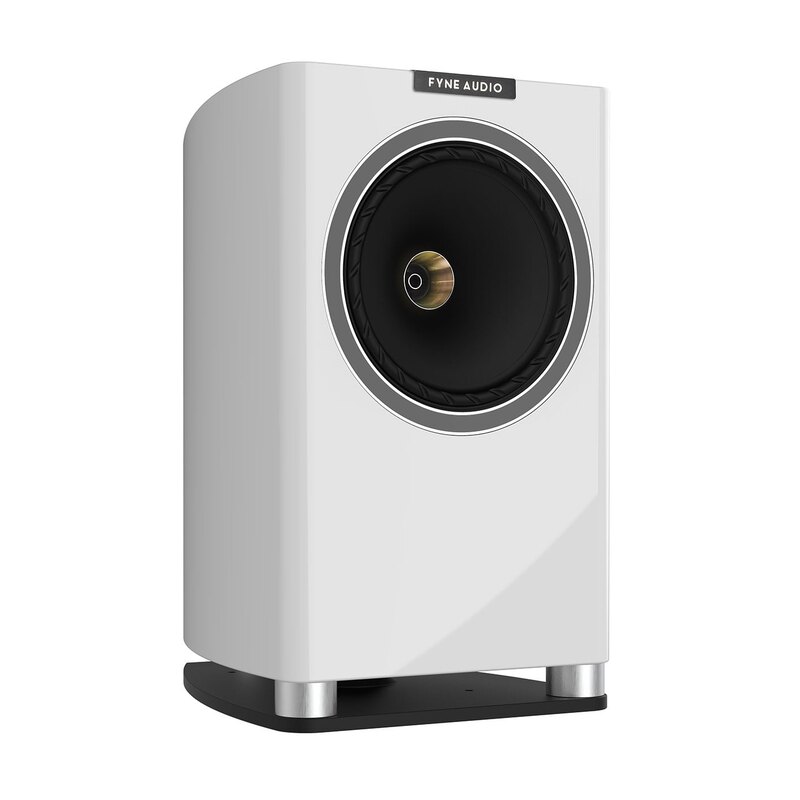

The F701 is a two-way standmount speaker that uses a single 200mm IsoFlare point source driver. A 25mm magnesium dome compression tweeter sits at the centre of the multi-fibre bass/midrange cone, which has a FyneFlute surround and a neodymium magnet system. The crossover point is 1.7kHz.
The port fires downwards and has a BassTrax Tractrix diffuser built into it. The crossover is a bi-wired passive low-loss design with a second-order low pass and a first-order high pass, and it is Cryo-Lite treated. Cabinets are handcrafted in the UK with a piano gloss lacquer over veneer, in black, white or walnut.

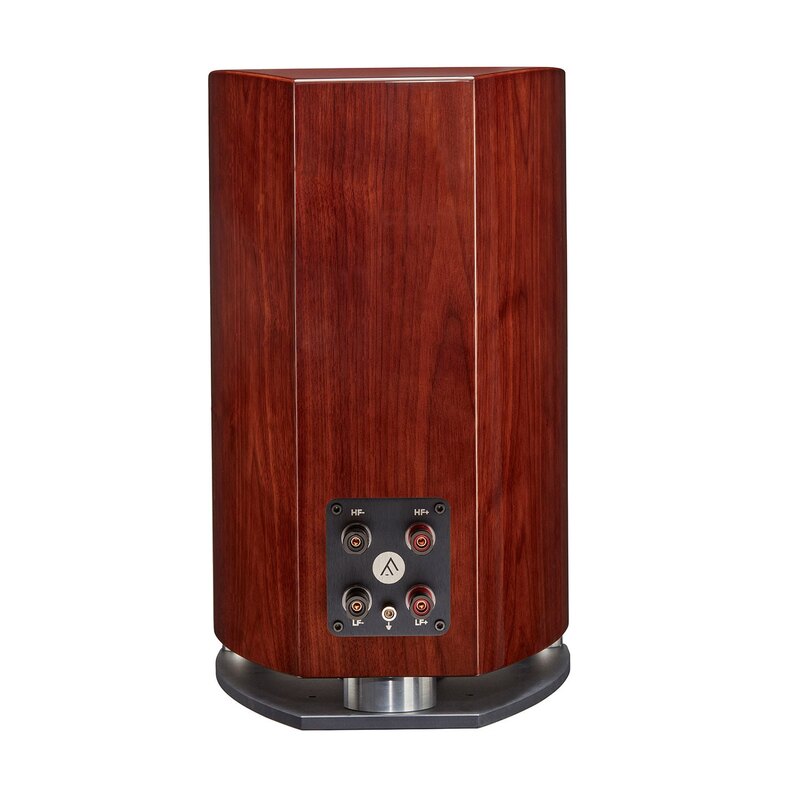

The speaker is rated at 91dB sensitivity into 8 ohms and handles 90W RMS continuous, with 360W peak. Its recommended amplifier range is 30 to 180W RMS. Connection is through bi-wired terminals. The maker offers the FS8 Stand as a matching stand, sold as a separate item. The price on the maker's page is quoted per pair.
Video
Specifiche
- Marca
- Fyne Audio
- Modello
- F701
- Categoria
- Hi-Fi e audio domestico › Casse
Audio
- System type
- 2 way, downwards firing port with BassTrax Tractrix diffuser
- Frequency response (-6dB typical in room)
- 35Hz - 34kHz
- Sensitivity (2.83 Volt @ 1m)
- 91dB
- Nominal impedance
- 8 Ohm
- Crossover frequency
- 1.7kHz
- Crossover type
- Bi-wired passive low loss, 2nd order low pass, 1st order high pass. Cryo-Lite treated.
Drivers
- Drive unit complement
- 1 x 200mm IsoFlare point source driver, multi-fibre bass / midrange cone, FyneFlute™ surround with 25mm magnesium dome compression tweeter, neodymium magnet system
Power
- Recommended amplifier power (Watt RMS)
- 30 - 180
- Continuous power handling (Watt RMS)
- 90
- Peak power handling (Watt)
- 360
Physical
- Dimensions - HxWxD
- 465 x 278 x 389mm (18.3 x 10.9 x 15.3")
- Net weight - each
- 13.6 (30.0lbs)
- Finishes
- Piano Gloss Walnut / Piano Gloss Black / Piano Gloss White
- S-Trax position (from cabinet front edge)
- 64mm (2.5")
- SuperTrax position (from cabinet front edge)
- 40mm (1.6")
General
- SKU
- F8000018
- Series
- F700 Series
- Supplied as
- Per pair
