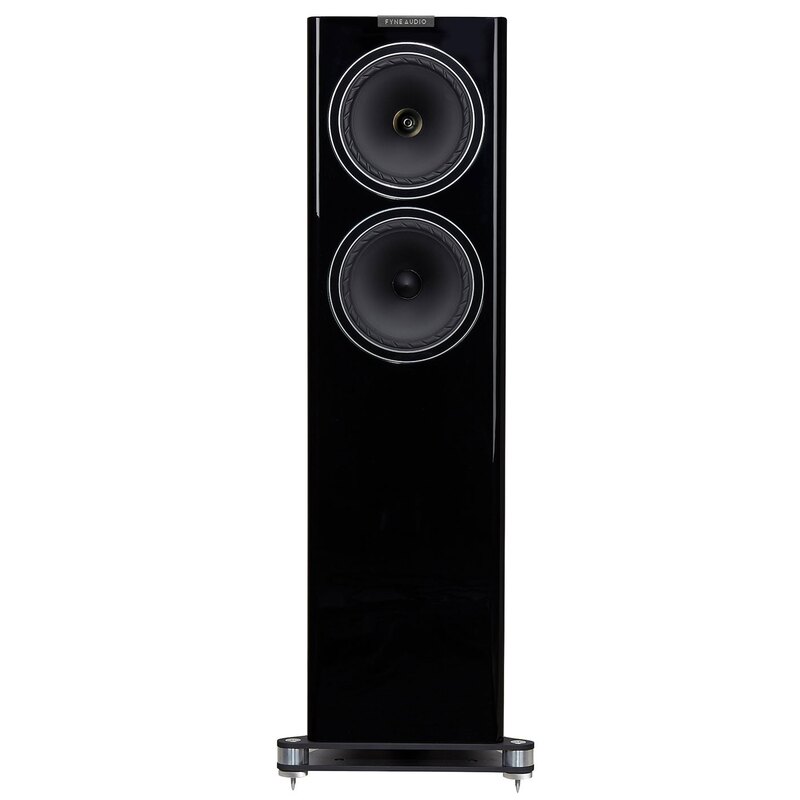

F702
The F702 is a midsized floorstanding two-and-a-half-way loudspeaker with a 200mm IsoFlare point source driver and a 200mm multi-fibre bass driver in a twin cavity cabinet. It suits Hi-Fi listening in mid to large rooms and is sold as a pair.
- 200mm IsoFlare point source driver with 25mm magnesium dome tweeter
- Second 200mm multi-fibre bass/midrange driver
- Twin cavity cabinet with downward-firing BassTrax port
- 92dB sensitivity, 8 Ohm nominal impedance
- Suits amplifiers rated 30–200W RMS
- Piano Gloss Black, Walnut or White finish
Foto
8Annunci
Ancora nessun annuncio di questo modello
Quando qualcuno venderà un F702, qui compariranno gli annunci e lo storico delle vendite.
Vendine uno ugualeDescrizione
The F702 is a floorstanding speaker from the F700 Series. A 200mm IsoFlare point source driver, with a 25mm magnesium dome compression tweeter at its centre, handles the midrange and treble. A second 200mm multi-fibre bass/midrange cone adds low-frequency output. Both cones use FyneFlute surrounds.
The cabinet uses a twin cavity loading system and a downward-firing port. A BassTrax Tractrix diffuser is built into the port to spread the low-frequency output. The crossover is a bi-wired passive low-loss design with Cryo-Lite treatment, with crossover points at 250Hz and 1.7kHz.

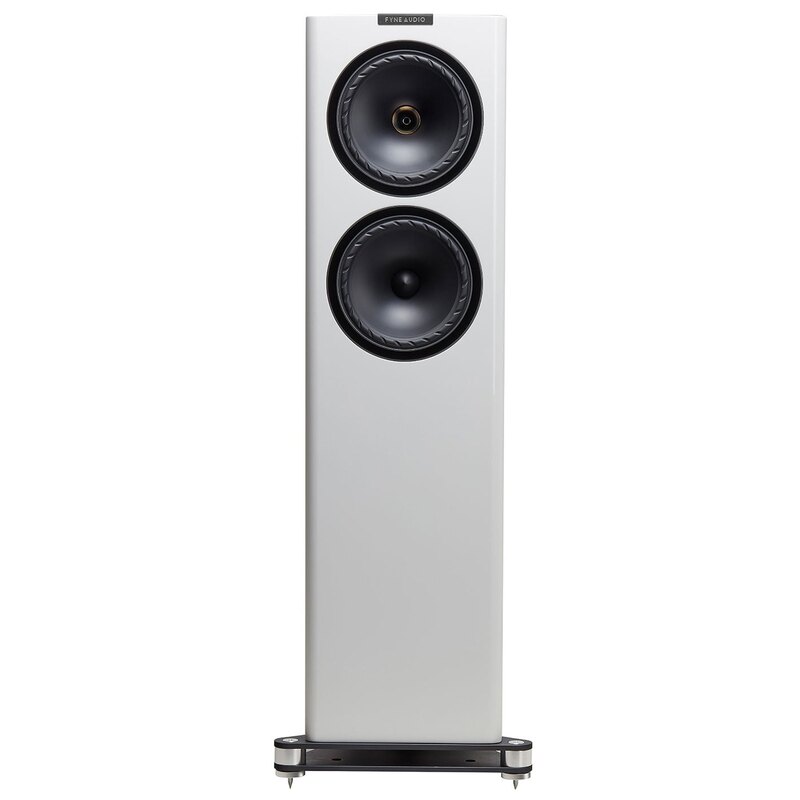

The speaker has a sensitivity of 92dB and an 8 Ohm nominal impedance. It is rated for amplifiers of 30 to 200 watts RMS. It comes in Piano Gloss Black, Piano Gloss Walnut and Piano Gloss White finishes. The page lists a Clear colour option as well.
Video
Specifiche
- Marca
- Fyne Audio
- Modello
- F702
- Categoria
- Hi-Fi e audio domestico › Casse
Audio
- System type
- 2 ½ way, downwards firing port, with BassTrax™ Tractrix diffuser*, twin cavity loading system
- Sensitivity (2.83 Volt @ 1m)
- 92dB
- Nominal impedance
- 8 Ohm
- Frequency response (-6dB typical in room)
- 30Hz - 34kHz
- Crossover frequency
- 250Hz & 1.7kHz
- Crossover type
- Bi-wired passive low loss, 2nd order low pass, 1st order high pass. Cryo-Lite treated
Drivers
- Drive unit complement
- 1 x 200mm IsoFlare™ point source driver, multi-fibre bass / midrange cone, FyneFlute™ surround with 25mm magnesium dome compression tweeter, neodymium magnet system . 1 x 200mm multi-fibre bass / midrange cone, FyneFlute™ surround.
Power
- Recommended amplifier power (Watt RMS)
- 30 - 200
- Continuous power handling (Watt RMS)
- 100
Physical
- Dimensions - HxWxD
- 1111 x 384 x 439mm (43.7 x 15.1 x 17.3”)
- Net weight - each
- 30.5kg (67.2lbs)
- Finishes
- Piano Gloss Walnut / Piano Gloss Black / Piano Gloss White
- Sold as
- Per pair
Placement
- S-Trax position (from cabinet front edge)
- 64mm (2.5")
- SuperTrax position (from cabinet front edge)
- 40mm (1.6")
Product
- SKU
- F8000020
- Series
- F700 Series
