FA502iC LCR
In-ceiling or in-wall 2-way speaker with an angled 8-inch IsoFlare driver, made for left, centre and right channels in custom-install home theatre systems where speakers sit off-axis from the listener. Sold as a single unit with a paintable round grille.
- 8" IsoFlare driver angled 15° to the mounting surface
- Driver can be rotated in the cut-out to aim at the listener
- 25mm titanium dome compression tweeter
- 91dB sensitivity, 8 ohm nominal impedance
- Frequency response 35Hz–34kHz (-6dB, in room)

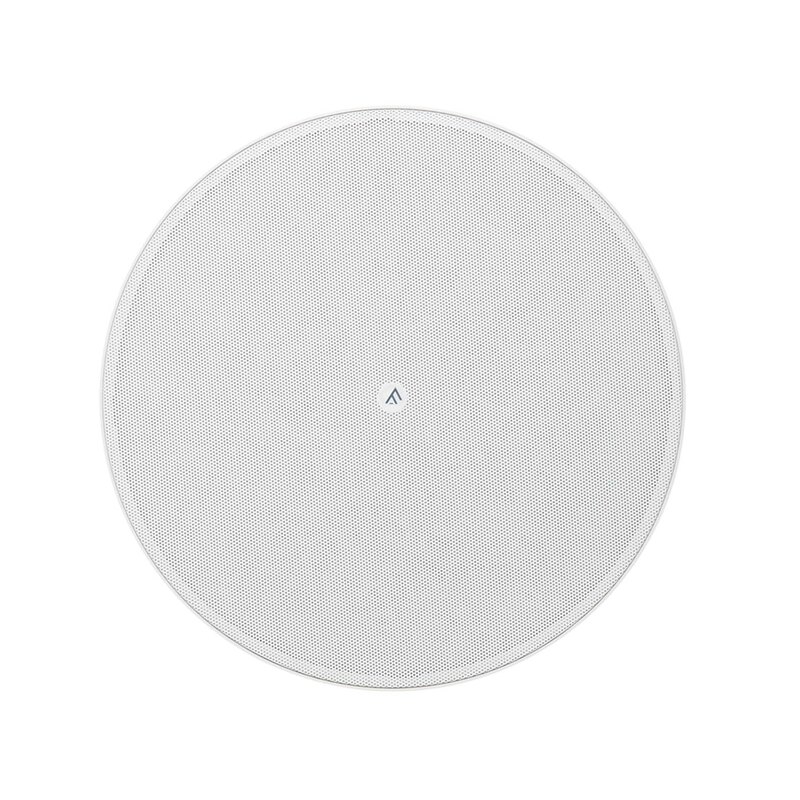

- Paintable low-profile round grille supplied
Foto
5Annunci
Ancora nessun annuncio di questo modello
Quando qualcuno venderà un FA502iC LCR, qui compariranno gli annunci e lo storico delle vendite.
Vendine uno ugualeDescrizione

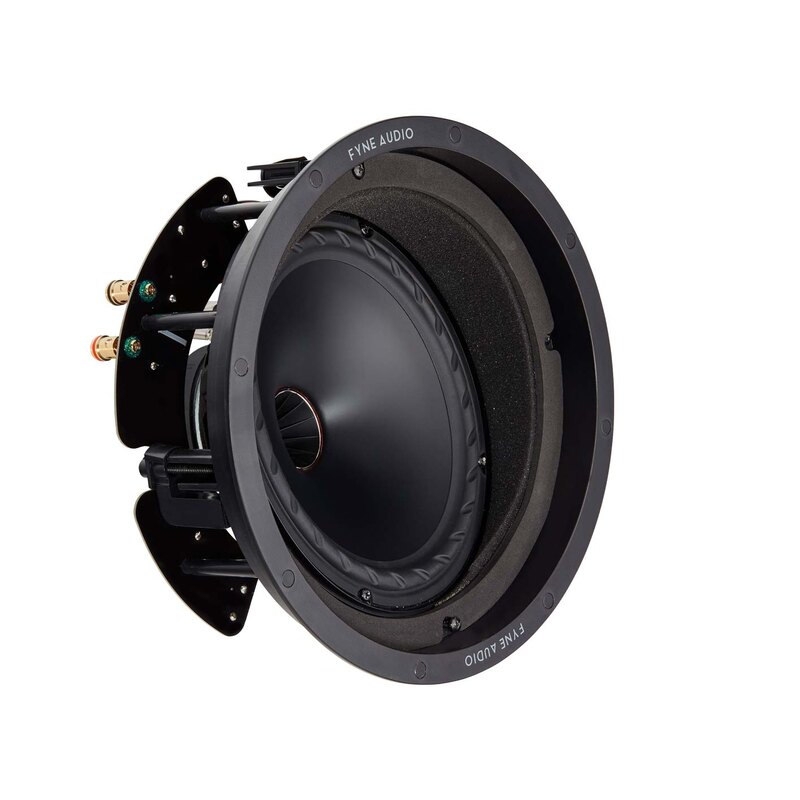

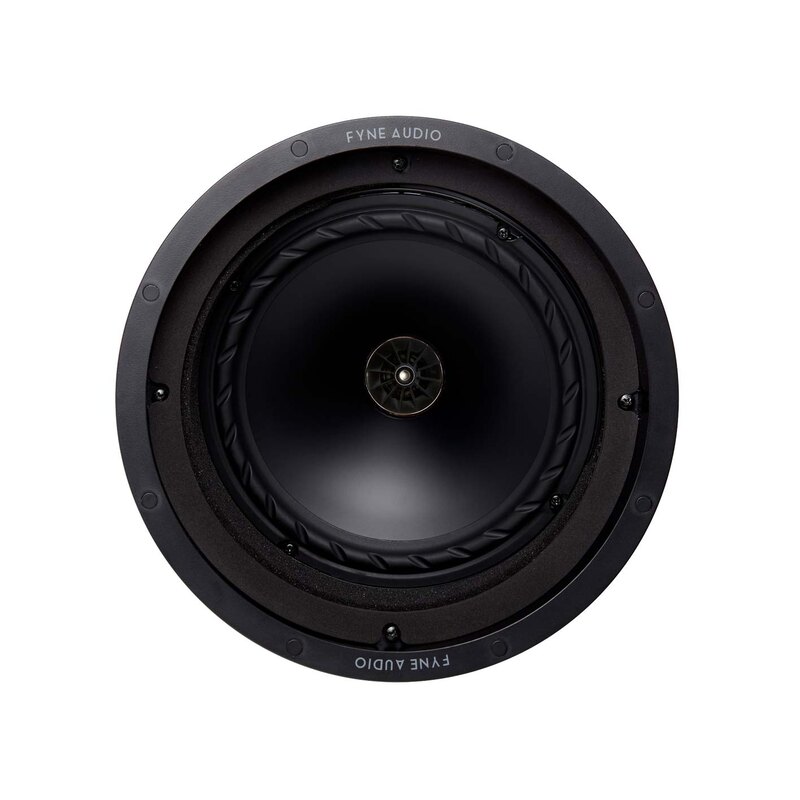

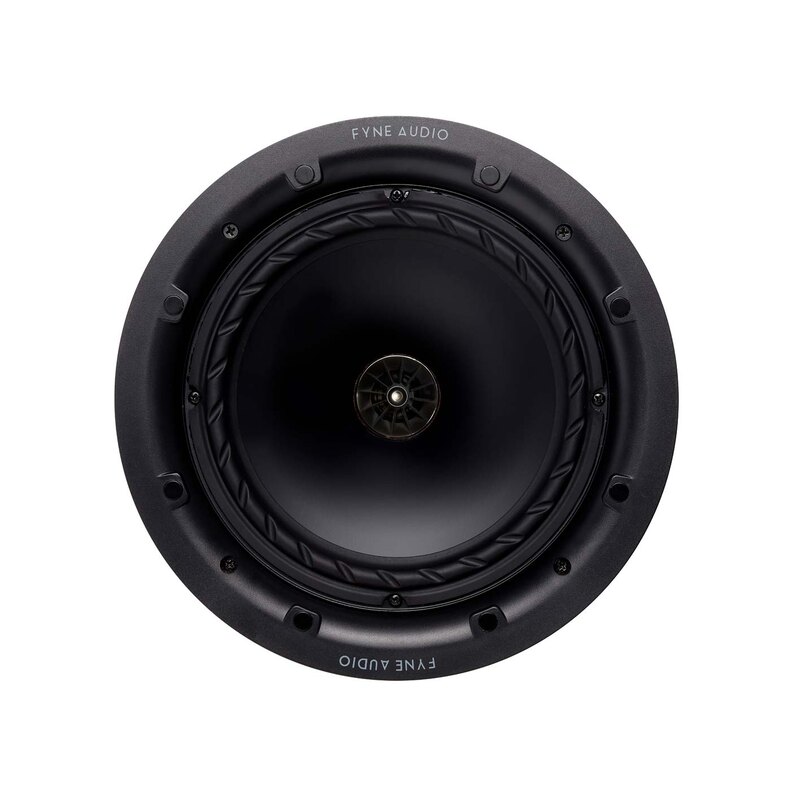

The FA502iC LCR is a home-install loudspeaker for ceiling or wall mounting. Its 200mm (8") IsoFlare point-source driver is set at 15 degrees to the mounting surface and can be rotated within the round cut-out, so the output can be aimed at the main listening position. This suits left, centre and right channels in home theatre setups where the speaker is offset from the seating.

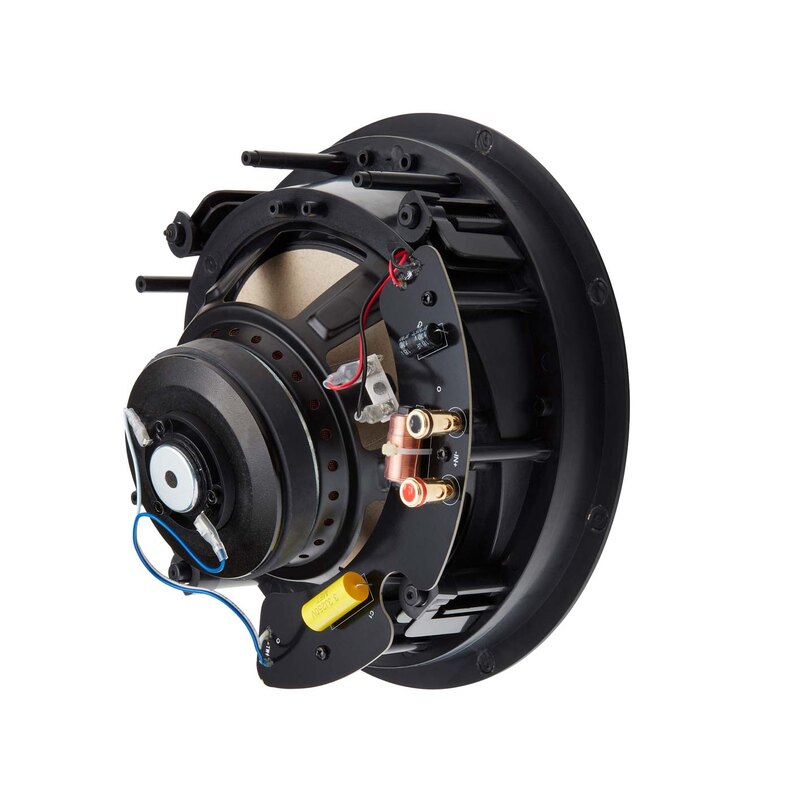

The driver combines a multi-fibre bass/midrange cone with a FyneFlute surround and a 25mm titanium dome compression tweeter. The passive crossover splits at 1.7kHz, using a 2nd order low pass and a 1st order high pass. Sensitivity is 91dB at 2.83V/1m into a nominal 8 ohms, with 75W RMS continuous handling and a 300W peak rating.
Installation follows the standard FA502iC approach, with a 255mm cut-out and 155mm of depth needed behind the mounting surface. A clamp mechanism with 0–26mm of travel secures it. A low-profile round grille is supplied and can be painted; a cut-out template and a shared FA300iC/FA500iC manual are offered for download.
Specifiche
- Marca
- Fyne Audio
- Modello
- FA502iC LCR
- Categoria
- Audio live › Altro audio live
Audio
- System type
- 2 way IsoFlare loudspeaker for in-ceiling or in-wall application, angled dispersion for LCR applications
- Frequency response (-6dB typical in room)
- 35Hz - 34kHz
- Sensitivity (2.83 Volt @ 1m)
- 91dB
- Nominal impedance
- 8 Ohm
- Crossover frequency
- 1.7kHz
- Crossover type
- Passive 2nd order low pass, 1st order high pass
- Suggested min volume
- 18 L
Drivers
- Drive unit complement
- 1 x 200mm (8") IsoFlare point source driver, multi-fibre bass / midrange cone, FyneFlute surround with 25mm titanium dome compression tweeter
Power
- Recommended amplifier power (Watt RMS)
- 30 - 150
- Continuous power handling (Watt RMS)
- 75
- Peak power handling (Watt)
- 300
Physical
- Dimensions - Dia x Depth
- 278 x 157mm (10.9 x 6.2")
- Round grille diameter
- 288mm (11.3")
- Cut-out diameter
- 255mm (10.0")
- Depth behind mounting surface
- 155mm (6.1")
- Clamp travel
- 0 - 26mm (0 - 1.0")
- Net weight - each
- 2.4kg (5.2lbs)
In the box
- Supplied grille
- Paintable, low profile round grille
- Sold as
- Single unit
- SKU
- F8000031
