twotwo.5
Compact two-way active nearfield studio monitor with a 140mm bass driver, 27mm soft-dome tweeter and ATL bass loading. Built-in DSP and dual Class-D amplification suit small control rooms, broadcast and post-production spaces, and it can be placed vertically or horizontally.
- Active two-way nearfield monitor
- 140mm LF driver and 27mm soft-dome HF driver
- ATL bass loading, 1.5m effective length
- Dual Class-D amplification with DSP
- Analogue XLR/RCA and AES digital XLR inputs
- Vertical or horizontal placement
Foto
5Annunci
Ancora nessun annuncio di questo modello
Quando qualcuno venderà un twotwo.5, qui compariranno gli annunci e lo storico delle vendite.
Vendine uno ugualeDescrizione
The twotwo.5 is the smallest model in the twotwo series of active reference monitors. It pairs a 140mm (5.5 inch) bass driver and a 27mm soft-dome tweeter with an Advanced Transmission Line (ATL) labyrinth cabinet, giving an effective ATL length of 1.5m. A DSP engine controls driver response, crossover and EQ, and two Class-D power amplifiers drive the two units.

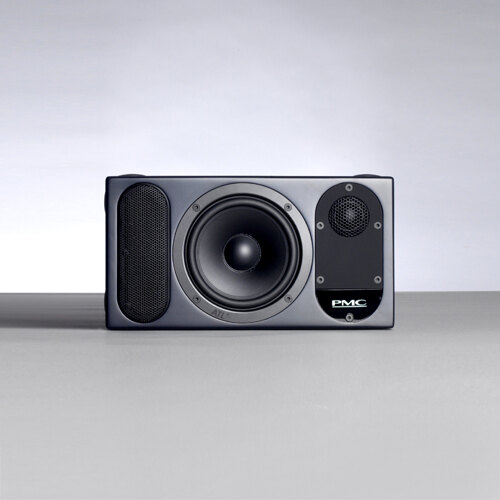

The cabinet can be used standing upright or on its side without affecting stereo imaging or tonal accuracy. This makes it practical where space is limited, such as outside broadcast vehicles, small radio studios, TV sound galleries, project studios, video editing and post-production rooms, and A&R listening.

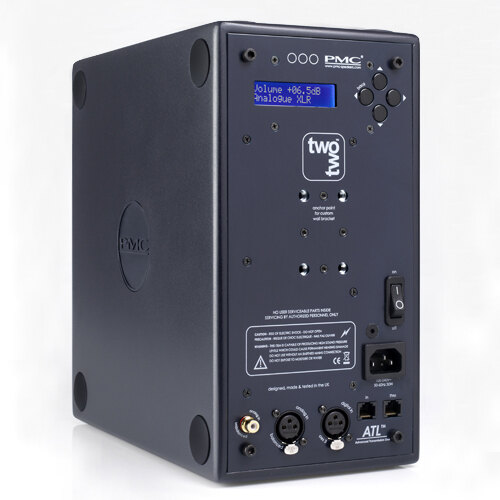

Inputs are balanced analogue on XLR, unbalanced analogue on RCA/phono, and AES3 digital on XLR with selectable left or right channel. Digital resolution goes up to 192kHz. Each input has its own trim range of ±8dB, and analogue sensitivity is adjustable from +4 to +15dBu. Registering the speakers within 10 days of purchase extends the warranty to 20 years, subject to terms.
Video
Specifiche
- Marca
- PMC
- Modello
- twotwo.5
- Categoria
- Studio › Monitor da studio
Audio
- Frequency response
- 50Hz – 25kHz
- Crossover frequency
- 1.8kHz
- Effective ATL length
- 1.5m (4.92ft)
- Sensitivity
- Adjustable +4 to +15dBu
- Digital resolution
- Up to 192kHz
Drivers
- LF driver
- 140mm (5.5 inch)
- HF driver
- 27mm soft dome
- Amplification
- Dual Class-D
- Signal processing
- DSP for driver response, crossover and EQ
Inputs
- Analogue balanced
- XLR
- Analogue unbalanced
- RCA/Phono
- Digital
- AES3 XLR, left/right channel selectable
- Input impedance
- 20k balanced
- Input trim range
- ±8dB per input
- XLR-3F wiring
- Pin-1 screen, Pin-2 hot, Pin-3 cold
Physical
- Height
- 296mm (11.7")
- Width
- 155mm (6.1")
- Depth
- 295mm (11.7")
- Weight
- 5.4kg (11.9lbs)
- Orientation
- Vertical or horizontal
Warranty
- Extended warranty
- 20 years if registered within 10 days of purchase
