3020· Casse
Compact two-way reflex bookshelf speaker with a 125 mm paper/aramid bass driver and a 25 mm concentric ring-dome tweeter, sold as a pair. Aimed at small to medium rooms and for use with modest amplifiers.
- 2-way reflex bookshelf speaker, sold as a pair
- 125 mm bass driver, 25 mm concentric ring-dome tweeter
- Frequency response 64 Hz - 22 kHz (±3 dB)
- Sensitivity 88 dB, nominal impedance 6 ohm
- Recommended amplifier power 25 - 75 W
- Five finishes with magnetic grilles
Foto
8Annunci
Ancora nessun annuncio di questo modello
Quando qualcuno venderà un 3020, qui compariranno gli annunci e lo storico delle vendite.
Vendine uno ugualeDescrizione

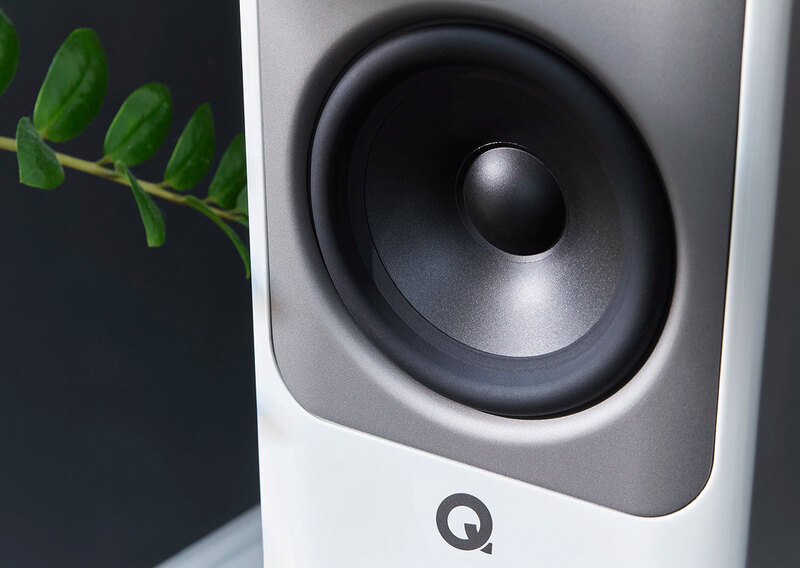

The 3020 is a 2-way bass-reflex bookshelf speaker from the 3000 Series. It combines a 125 mm bass driver, made from a blend of paper and aramid fibre, with a 25 mm tweeter that uses a concentric ring-dome design for low distortion and wide dispersion. The crossover is set at 2.9 kHz, and the cabinet is built to keep resonance low.
Quoted frequency response is 64 Hz to 22 kHz (±3 dB), with a sensitivity of 88 dB and a nominal impedance of 6 ohm, so it can be driven by amplifiers rated from 25 to 75 W. It is intended to sit on stands, and the box includes port bungs for adjusting bass output in the room.

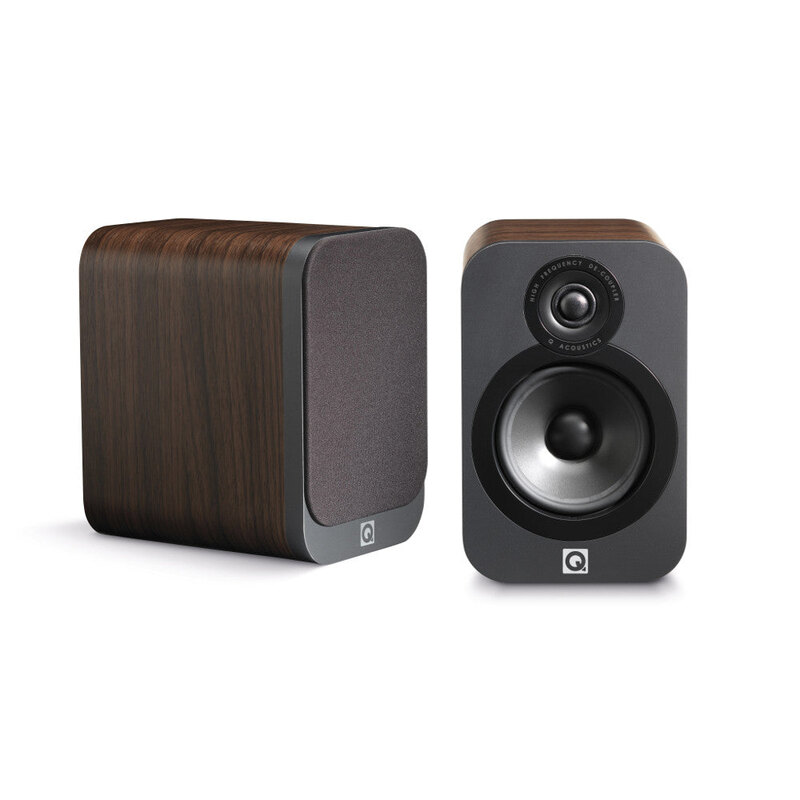

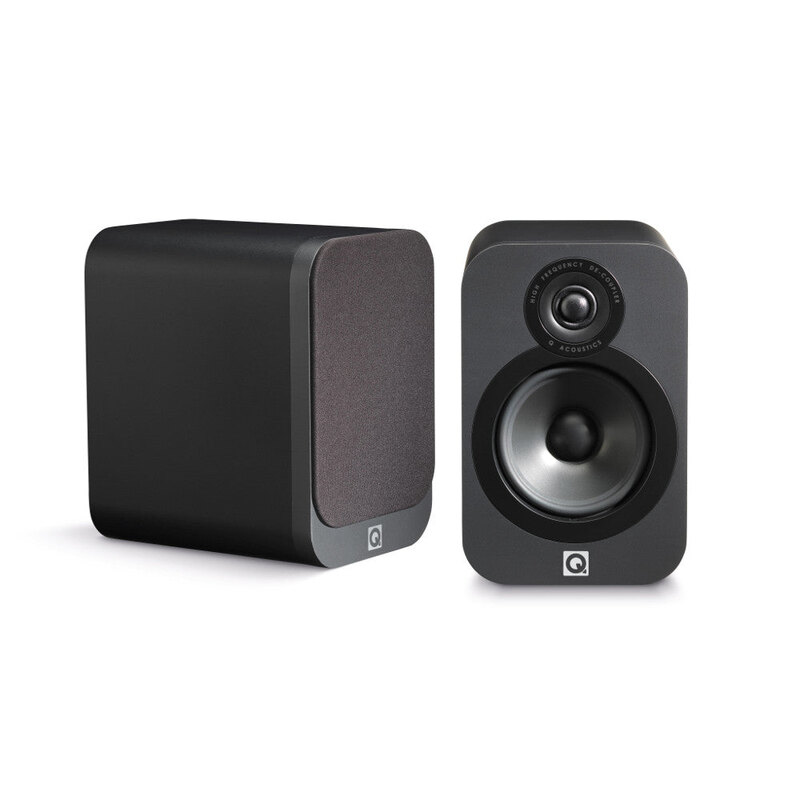

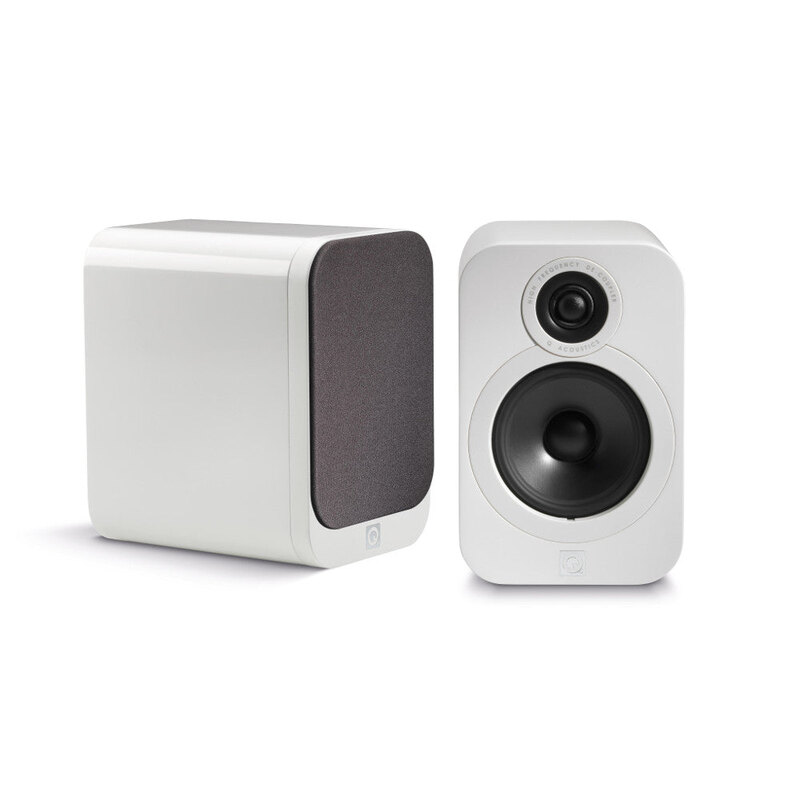

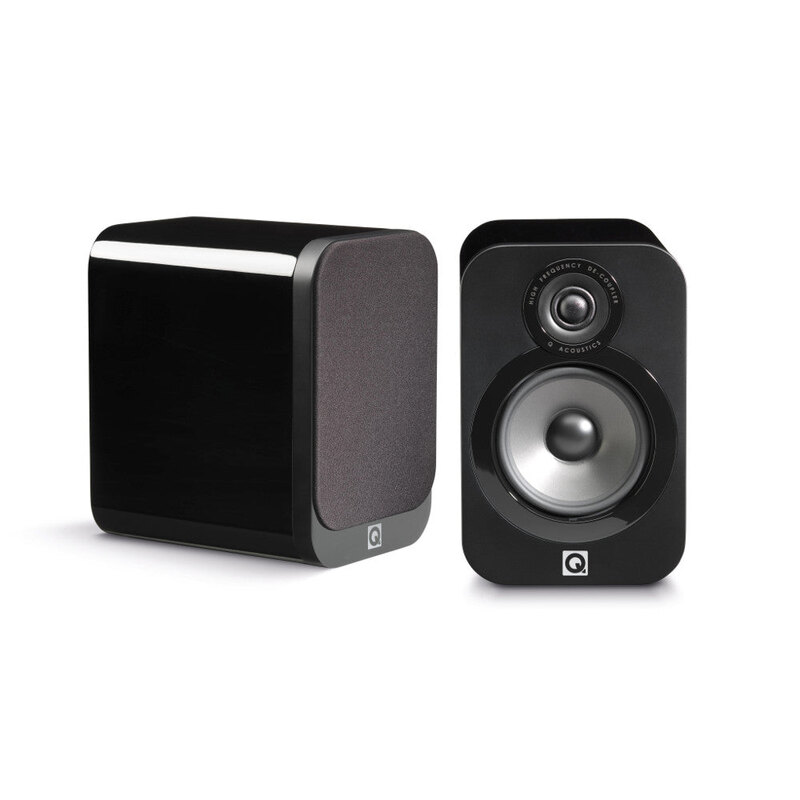

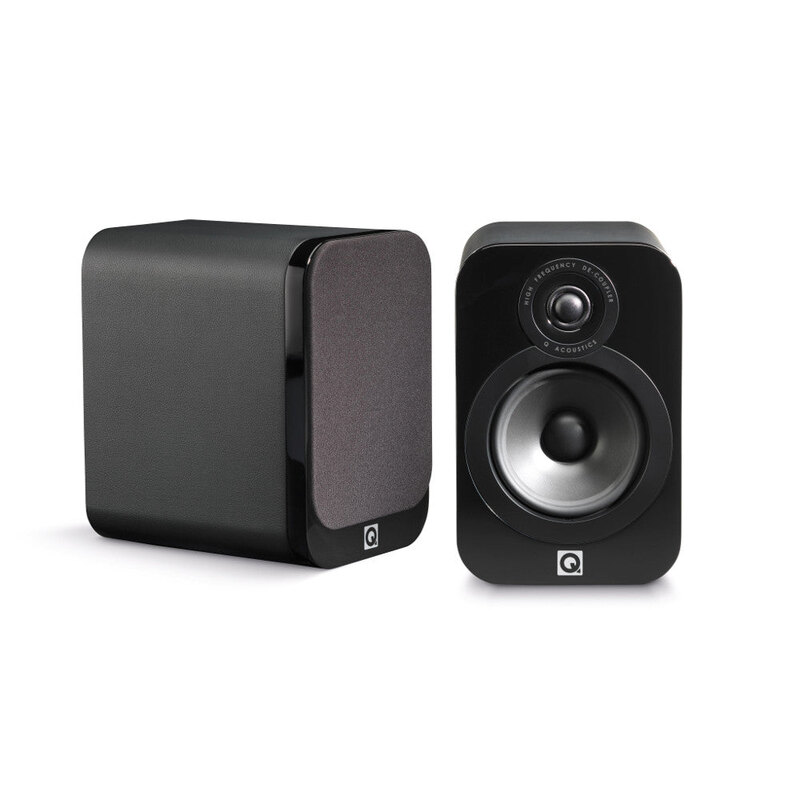

Connection is through standard speaker terminals from an amplifier. Magnetic grilles fit to the front baffle and can be left off for a cleaner look. Finishes include Graphite, Walnut, Gloss Black, Gloss White and a Leather and Gloss Black option.
Video
Specifiche
- Marca
- Q Acoustics
- Modello
- 3020
- Categoria
- Hi-Fi e audio domestico › Casse
Audio
- Enclosure type
- 2-way reflex
- Bass unit
- 125mm
- Treble unit
- 25mm
- Frequency response
- 64Hz - 22kHz
- Crossover frequency
- 2.9kHz
- Sensitivity
- 88dB
Power
- Nominal impedance
- 6ohm
- Minimum impedance
- 4.0ohm
- Recommended power
- 25 - 75w
Physical
- Cabinet dimensions (H x W x D)
- 260 x 170 x 226 mm (10.2 x 6.7 x 8.9 in)
- Overall dimensions (H x W x D)
- 264 x 170 x 237 mm (10.4 x 6.7 x 9.3 in)
- Weight
- 4.6kg (10.1 lbs)
- Sold in
- Pairs
- Finishes
- Graphite, Walnut, Gloss Black, Gloss White, Leather
In the box
- Speakers
- 2 x 3020 Bookshelf Speakers
- Grilles
- 2 x Magnetic Speaker Grills
- Port bungs
- 2
- Handling gloves
- 1 x White Cotton Speaker Handling Gloves
- Rubber grips
- 8 x Rubber Speaker Grips
- Documentation
- 1 x User Manual
