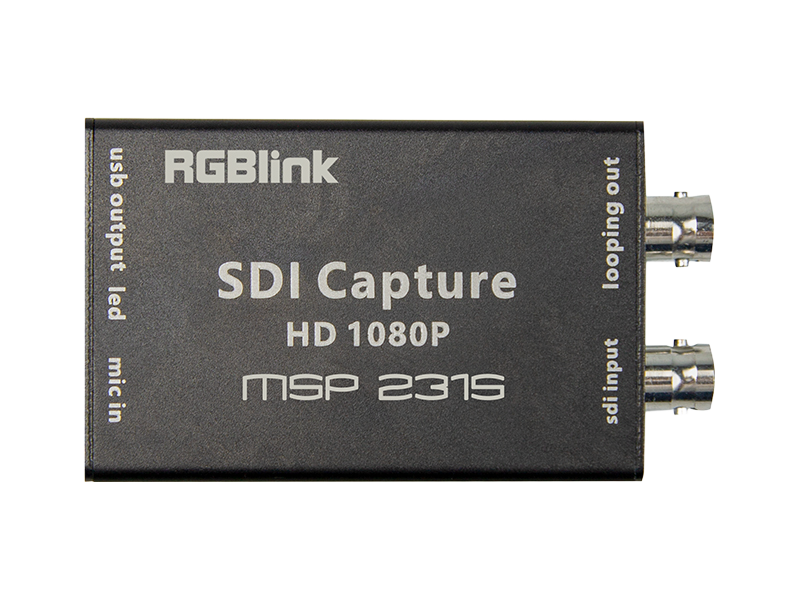

MSP 231S
Compact SDI-to-USB 2.0 capture dongle that takes a single SDI input at up to 1080p60 and presents it as a UVC/UAC video and audio device. It suits users who need to bring SDI cameras or switchers into streaming, recording or conferencing software without drivers.
- SDI to USB 2.0 capture dongle
- Single SDI input, up to 1080p60
- Capture resolution up to 1920×1080
- UVC and UAC compliant, plug and play
- MIC input for synchronous audio
- Works with OBS, PotPlayer, AMCAP, VLC
Foto
8Annunci
Ancora nessun annuncio di questo modello
Quando qualcuno venderà un MSP 231S, qui compariranno gli annunci e lo storico delle vendite.
Vendine uno ugualeDescrizione
The MSP 231S converts one SDI input into a USB 2.0 video and audio stream. It captures at resolutions up to 1920×1080 and runs at 1080p60. It meets the UVC and UAC standards, so computers detect it as a standard camera and audio device with no driver installation.
It works with Windows, Linux and macOS, and is compatible with USB 2.0 host chipsets from Intel, Renesas, ASMedia and Fresco Logic, among others. It is backward compatible with USB 2.0 ports. A microphone input allows synchronous audio to be captured with the video. The unit draws its power over the USB connection, so no separate power supply is needed.
The captured feed can be used for preview, recording, capture and live broadcast in third-party software such as OBS, PotPlayer, AMCAP and VLC. Documentation available for the product includes a specification sheet and a user manual, both in English.
Specifiche
- Marca
- RGBlink
- Modello
- MSP 231S
- Categoria
- Studio › Interfacce audio
Inputs
- Video input
- 1 × SDI
- Audio input
- MIC synchronous audio input
Outputs
- Video output
- USB 2.0
- Output format
- 1080p60
Video
- Maximum capture resolution
- 1920×1080
- Maximum frame rate
- 60 fps (1080P60)
Connectivity
- Host interface
- USB 2.0
- Backward compatibility
- USB 2.0
- Supported USB chipsets
- Intel, Renesas, ASMedia, Fresco Logic and others
Software
- Operating systems
- Windows, Linux, macOS X
- Standards
- UVC, UAC
- Compatible software
- OBS, POTPLAYER, AMCAP, VLC
- Drivers
- Not required (plug and play)
Power
- External power supply
- Not required
Physical
- Form factor
- Portable SDI to USB 2.0 capture dongle
- Product type
- SDI Capture Card
Documentation
- Specification
- EN, V1.1, 2023-11-10
- User manual
- EN, V1.0, 2023-06-26
