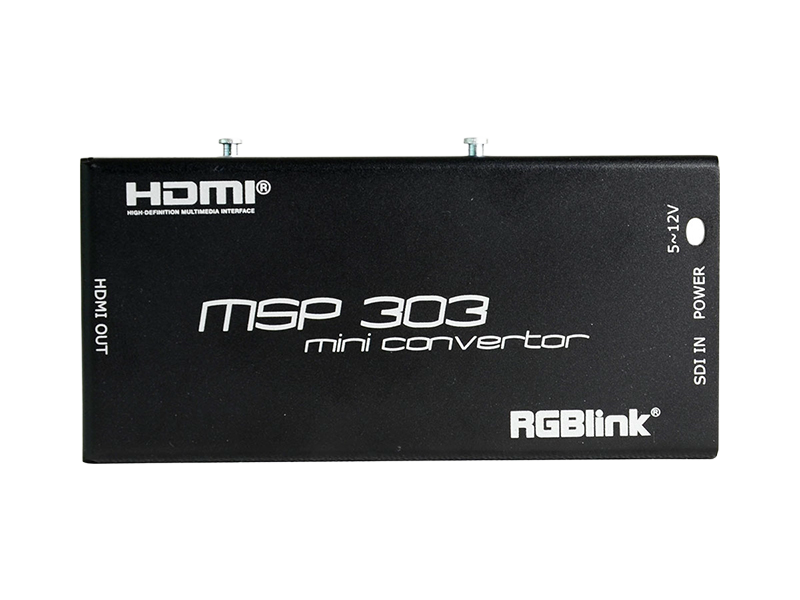

MSP 303
The MSP 303 is a compact converter that takes one SDI input and outputs HDMI. It suits users who need to feed an HDMI display or device from an SDI source, such as a camera or switcher.
- 1 SDI input to 1 HDMI output
- Mini-size housing
- Compatible with all SMPTE signals
- Accepts 3G/HD/SD SDI
- Embedded audio support
- Optional mounting ears for the MSP rack
Foto
8Annunci
Ancora nessun annuncio di questo modello
Quando qualcuno venderà un MSP 303, qui compariranno gli annunci e lo storico delle vendite.
Vendine uno ugualeDescrizione
The MSP 303 converts a single SDI signal to a single HDMI output in a mini-sized housing. It accepts 3G, HD and SD SDI and works with all SMPTE signals. Audio embedded in the SDI stream is carried through to the HDMI output.
SDI input timings range from 480i@60 and 576i through 720p and 1080i up to 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 Hz. The HDMI output provides 720×480@60, 720×576@60, 1280×720@60 and 1920×1080 at the same set of frame rates from 23.98 to 60 Hz.
The unit belongs to the MSP series of micro converters. An optional pair of mounting ears allows it to be fitted to the MSP rack. A specification document (version 1.1, dated 2023-07-11) is available for download.
Specifiche
- Marca
- RGBlink
- Modello
- MSP 303
- Categoria
- Studio › Altra attrezzatura da studio
Inputs
- SDI input
- 1
- SDI standards
- 3G/HD/SD SDI, all SMPTE signals compatible
- SDI input resolutions
- 480i@60, 576i, 720P@50/59.94/60, 1080i@50/59.94/60, 1080P@23.98/24/25/29.97/30/50/59.94/60
Outputs
- HDMI output
- 1
- HDMI output resolutions
- 720×480@60, 720×576@60, 1280×720@60, 1920×1080@23.98/24/25/29.97/30/50/59.94/60
Audio
- Audio
- Embedded audio
Connectivity
- Signal conversion
- SDI to HDMI
- Series
- MSP Series micro converter
Physical
- Size
- Mini size
- Rack mounting
- Optional pair of mounting ears for the MSP rack
Software
- Documentation
- Specification, EN, V1.1, 2023-07-11
- Firmware
- No specific firmware
