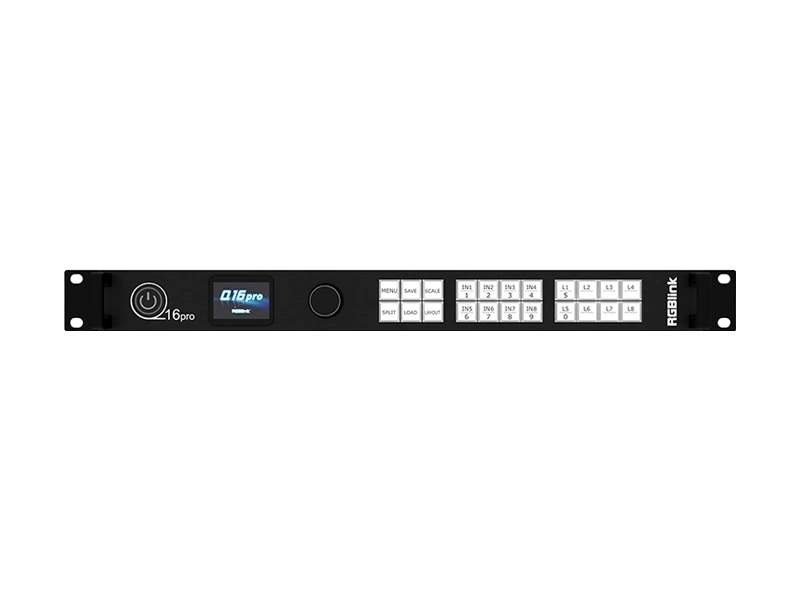

Q16pro Gen2 1U
A modular 1U 4K videowall and multi-layer splicing processor that takes up to 8 inputs and drives 4 outputs. It suits corporate events, worship productions, hybrid meetings and large LED video wall installations.
- Modular 1U videowall processor, up to 8 inputs and 4 outputs
- 4K@60 input and output
- 8 roaming layers that cross outputs without extra layer count
- Standard unit has 4 HDMI 1.3 outputs
- Control via front panel, RS-232, Ethernet, XPOSE 2.0 and OpenAPI
- Webcam decoding and dual OSD rolling subtitles on 2K output
Foto
8Annunci
Ancora nessun annuncio di questo modello
Quando qualcuno venderà un Q16pro Gen2 1U, qui compariranno gli annunci e lo storico delle vendite.
Vendine uno ugualeDescrizione
The unit is a 1U processor built from swappable input and output modules. Inputs can be HDMI 2.0, DVI, SD/HD/3G-SDI, DisplayPort 1.2 or an H.264/265 stream, for 2K and 4K signals, up to 8 in total. Output options include HDMI 2.0, DP 1.2, HDMI 1.3, DVI and SDI, with 4 outputs. The standard configuration ships with 4 HDMI 1.3 outputs.
It offers 8 layers that can roam and cross any output without using up additional layer count, and one output port can span 8 screens. Other functions are de-interlacing, dual OSD rolling subtitles on the 2K output module, custom EDID and output resolutions, and decoding of a webcam feed. 4K at 60 Hz is supported on inputs and outputs.
Control is from the front panel, or remotely over RS-232 and Ethernet. The XPOSE 2.0 app and the RGBlink OpenAPI allow control from the maker's software or third-party apps and controllers. Three versions are listed: 2K Standard No.1, 2K Standard No.2 and one suited to HM 1U.
Video
Specifiche
- Marca
- RGBlink
- Modello
- Q16pro Gen2 1U
- Categoria
- Audio live › Altro audio live
Inputs
- Maximum inputs
- 8
- Input module options
- Quad HDMI 2.0, quad DVI, quad SD/HD/3G SDI, dual HDMI 2.0 & dual DP 1.2, dual HDMI 1.3 & dual DVI, single H.264/265
- Supported signals
- 2K and 4K
- Input resolution/rate
- 4K@60
- Webcam connection
- Decoding from webcam supported
- EDID
- Custom EDID
Outputs
- Number of outputs
- 4
- Output module options
- Dual HDMI 2.0, dual DP 1.2, quad HDMI 1.3, quad DVI, quad SDI
- Standard outputs
- 4 x HDMI 1.3
- Output resolution/rate
- 4K@60
- Output resolutions
- Custom output resolutions
- Screen spanning
- 8 screens across output port without occupying layers
Video processing
- Layers
- 8 layers with roaming capacity
- Layer behavior
- Layer can cross over each output without layer counting up
- De-interlacing
- Supported
- OSD
- Dual OSD rolling subtitles for 2K output module
Connectivity
- Remote control ports
- RS-232 and Ethernet
- Local control
- Front control panel
- Software control
- XPOSE 2.0
- API
- RGBlink OpenAPI
Physical
- Form factor
- 1U
- Versions
- 2K Standard No.1, 2K Standard No.2, Suitable for HM 1U
Software
- Firmware (Q16pro Gen2_1U)
- V1.61 (2025-02-28)
- Firmware (Q16pro Gen2 1U-HM)
- V2.64 (2025-11-28)
